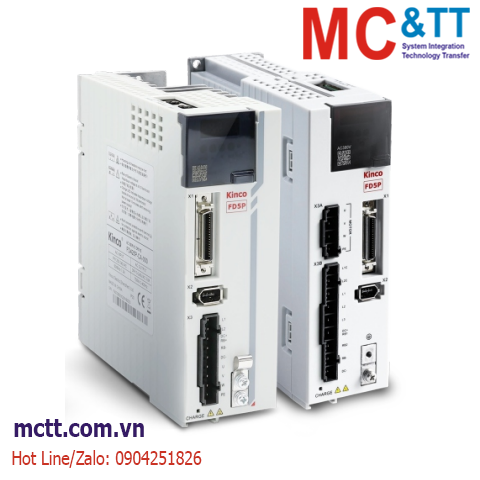

Bộ điều khiển AC Servo Driver AC220V, 400W, Profinet Kinco FD5P-PA-L2R9
FD5P PRO series drive is a high-voltage servo product by Kinco that can easily face complex environment, facilitate maintenance, reduce cost and increase efficiency according to the pain points faced by equipment in various industries. FD5P PRO support EtherCAT,Modbus, Profinet and other communication protocols, which can match magnetoelectric, photoelectric and other different types of encoder motor.The product configuration is flexible. Widely used in logistics,3C electronics, printing and packaging, textile machinery, woodworking machinery, lithium batteries, new energy and other industries.
Tính năng
- Suitable for high protection scenarios, motor protection level up to IP65;
- Vibration suppression, smooth operation, safe and reliable;
- Reliable quality, automatic production;
- Power planning covers 50W-7.5kW;
- High responsiveness, speed loop sampling frequency up to 16KHz
Thông số kỹ thuật
| Model |
Power
(W) |
Supply Voltage |
Maximum continuous output current（rms） |
Peak Current
(PEAK) |
Weight
（Kg） |
| FD5P-□A-L2R9 |
50~400 |
AC220V |
2.9 |
10.61 |
0.881 |
| FD5P-□A-L4R0 |
750 |
4 |
12.73 |
1.5 |
| FD5P-□A-L5R5 |
750~1000 |
5.5 |
16.97 |
| FD5P-□A-L7R6 |
1500 |
1PH/3PH, 200-240VAC |
7.6 |
22.98 |
1.4 |
| FD5P-□A-L010 |
2000 |
3PH, 200-240VAC |
10 |
28.29 |
2.1 |
| FD5P-□A-L013 |
2500 |
3PH, 200-240VAC |
13 |
32.53 |
2.1 |
| FD5P-□A-H5R4 |
1500 |
3PH, 380-415VAC |
5.4 |
16.97 |
1.4 |
| FD5P-□A-H8R6 |
2000 |
8.6 |
22.98 |
2.1 |
| FD5P-□A-H013 |
3000 |
13 |
32.53 |
2.1 |
| FD5P-□A-H017 |
4500 |
17 |
42.43 |
4 |
| FD5P-□A-H021 |
5500 |
21 |
53.04 |
4 |
| FD5P-□A-H026 |
7500 |
26 |
65.06 |
4 |
|
Note: □= L：RS232，RS485, Pulse
E：RS232，EtherCAT，Pulse
P: RS232,Profinet，Pulse
Note 2: FD5P-PA series driver has only 3 digital outputs：OUT1, OUT2, OUT3 |
Thông tin đặt hàng
Tài liệu
FD5P PRO&SMK Selection Manual
