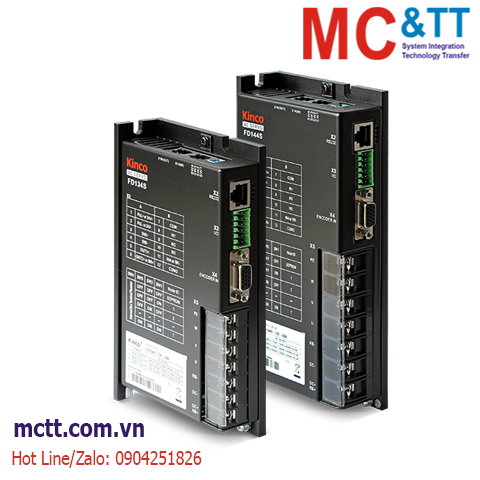

Bộ điều khiển DC Servo Driver 1200~1500W, RS485 & Pulse Kinco FD144S-LA-000
Tính năng
- Support pulse.
- Support MODBUS, CANopen and EtherCAT communication control.
- Low-voltage DC power supply, satisfy with requirements of AGV's power and power supply.
- New small-Size terminal design, compact size and beautiful appearance.
- 3 times(for maximum) overload design, increase response speed when AGV start/stops.
- Over-current, over-heat, over-voltage and motor over-heat protection(I²T), ensure driving system in a safe state.
- All series products conform with CE verification and ROHS environment verification standard.
Thông số kỹ thuật
| FD1X4S series |
Model |
Power
（W) |
Max continuous
output current
（rms)(A) |
Current
(PEAK) |
Control mode |
Brake power
supply |
24V
Logic Power Supply |
| single -axis |
FD114S-LB-000 |
50~100W |
5Arms |
8Ap |
RS485，pulse |
● |
○ |
| FD114S-CB-000 |
CANopen |
● |
● |
| FD114S-EB-000 |
EtherCAT |
● |
● |
| FD124S-LA-000 |
200~400W |
15Arms
（No auxiliary heat dissipation
up to 12Arms) |
48Ap |
RS485，pulse |
○ |
○ |
| FD124S-LB-000 |
● |
○ |
| FD124S-CA-000 |
CANopen |
○ |
● |
| FD124S-CB-000 |
● |
● |
| FD124S-EA-000 |
EtherCAT |
○ |
● |
| FD124S-EB-000 |
● |
● |
| FD134S-LA-000 |
750W |
25Arms
(No auxiliary heat dissipation
up to 20Arms) |
80Ap |
RS485，pulse |
○ |
○ |
| FD134S-LB-000 |
● |
○ |
| FD134S-CA-000 |
CANopen |
○ |
● |
| FD134S-CB-000 |
● |
● |
| FD134S-EA-000 |
EtherCAT |
○ |
● |
| FD134S-EB-000 |
● |
● |
| FD144S-LA-000 |
1.2~1.5kW |
40Arms
(No auxiliary heat dissipation
up to 30Arms） |
120Ap |
RS485，pulse |
○ |
○ |
| FD144S-LB-000 |
● |
○ |
| FD144S-CA-000 |
CANopen |
○ |
● |
| FD144S-CB-000 |
● |
● |
| FD144S-EA-000 |
EtherCAT |
○ |
● |
| FD144S-EB-000 |
● |
● |
| FD164S-CB-000 |
2.5KW |
80Arms
(No auxiliary heat dissipation
up to 60Arms） |
240Ap |
CANopen |
● |
● |
| Double-axis |
FD134S-LB-000-D2 |
750W |
20Arms
(No auxiliary heat dissipation
up to15Arms) |
80Ap |
RS485，pulse |
● |
○ |
| FD134S-CB-000-D2 |
CANopen |
● |
● |
| FD134S-CB-020-D2 |
CANopen |
● |
○ |
| Notes: ● means support, ○ means not support. |
| FD1X4S series |
Model |
Power
（W) |
Max continuous
output current
（rms)(A) |
Current
(PEAK) |
Control mode |
24V
Logic Power Supply |
Notes |
| single -axis |
FD114S-CB-005 |
50~100W |
5Arms |
8Ap |
CANopen |
● |
Matching absolute value encoder motor |
| FD114S-EB-005 |
EtherCAT |
● |
| FD124S-CB-005 |
200~400W |
15Arms
（No auxiliary heat dissipation
up to 12Arms) |
48Ap |
CANopen |
● |
| FD124S-EB-005 |
EtherCAT |
● |
| FD134S-CB-005 |
750W |
25Arms
(No auxiliary heat dissipation
up to 20Arms) |
80Ap |
CANopen |
● |
| FD134S-EB-005 |
EtherCAT |
● |
| FD144S-CB-005 |
1.2~1.5kW |
40Arms
(No auxiliary heat dissipation
up to 30Arms） |
120Ap |
CANopen |
● |
| FD144S-EB-005 |
EtherCAT |
● |
| Notes: ● means support, ○ means not support. |
Thông tin đặt hàng
Tài liệu
Kinco Low- voltage Catalog2024
