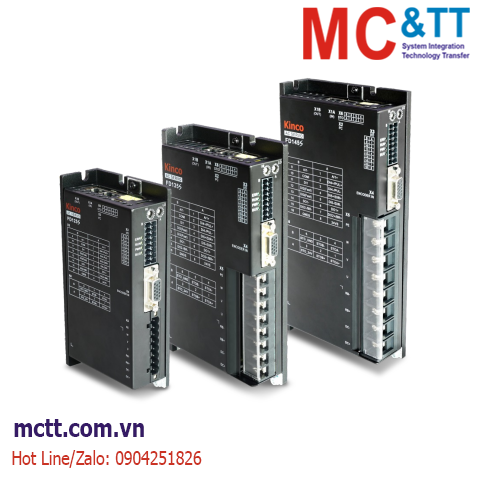

Bộ điều khiển DC Servo Driver 1200~1500W, EtherCAT, Pulse Kinco FD145S-ES-000
The fifth-generation upgraded low-voltage servo drive; Adopt a wide voltage input of 24-60VDC, with a power range of 200-2000W. Support multiple communication methods such as CANopen, Modbus RTU, EtherCAT, Profinet. Meet CE certification, RoHS 2.0, and UL standards , and supports STO safety function. Adopts a brand-new self-tuning platform, combined with adaptive notch filter and S-curve technology, which effectively suppresses vibration and noise and ensures smooth motor operation.
Tính năng
- Support RS485、CANopen、EtherCAT、Profinet communication.
- Automatically identify motor parameters.
- Motor temperature monitoring and over temperature protection.
- Equipped with S-curve and parameter self-tuning function.
- 1-channel analog function.
- Gantry control function.
- Support STO .
- Motor overspeed protection.
- Use Type-C debugging port
Thông số kỹ thuật
| Model |
Power（W) |
Maximum continuous output current（rms)(A) |
Peak current(AP) |
Brake output |
Logic power supply |
|
FD115S-□S-000
|
50～100W |
5A
|
18A |
1-channel brake (Voltage: 24V, Output capacity:1A, can directly drive the brake)
|
24VDC (allowable fluctuation range 18V~30V);
500mA+holding brake coil current;
Power and logic electrical isolation (500VDC)
|
|
FD125S-□S-000
|
200～400W |
15A
(Up to 12Arms without auxiliary cooling plate)
|
48A |
|
FD135S-□S-000
|
750～1000W |
30A
(Up to 22Arms without auxiliary cooling plate)
|
100A |
|
FD145S-□S-000
|
1200～1500W |
50A
(Up to 35Arms without auxiliary cooling plate)
|
160A |
Note：□=A:CANopen、RS485、Pulse
=E: EtherCAT、Pulse
=P: Profinet、Pulse |
Thông tin đặt hàng
Tài liệu
FD1X5S Servo Drive Selection Manual
