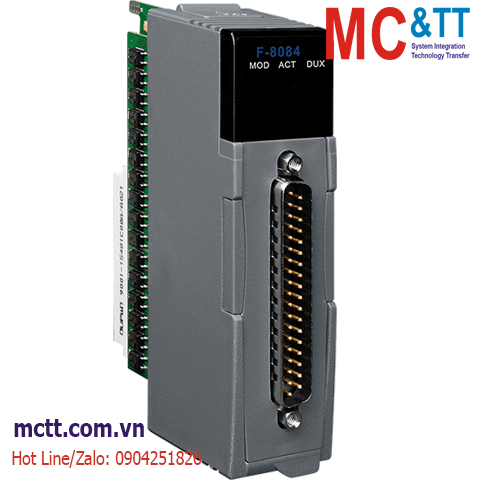

Module 8 kênh đầu vào tốc độ cao HSC ICP DAS F-8084 CR
Features
- 32-bit counter
- 8 up-counter/frequency channels
- 1 ~ 32767 us digital filter
- Falling/Rising/Both edge trigger
- RoHS compliance
- 3000 VDC isolation from output to backplane
- 3000 VDC isolation from output to frame ground
- Redundancy
- No error counting when redundant switching
Introduction
The F-8084 is a 32-bit high speed up-counter/frequency module. It can count up to 500 KHz input signal, and accuracy of the frequency mode is +/-0.4% FSR. The F-8084 features many diagnostic like some failures of communication, EEPROM, WDT, decoder, etc. When the modules are in the redundant mode and a failure occurs the slave module will take over as soon as possible. Moreover, the redundant switching is not only fast but also reliable for data exchanging. Thus, users can easily to use F-8084 to count.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
Yes |
| ESD (IEC 61000-4-2) |
Yes |
| LED Indicators |
| Status |
1 x RUN, 1 x ACT, 1 x DUX and Communication (32 as channel 0~31 status) |
| Counter/Frequency/Encoder Input |
| Channels |
8 |
| Type |
Counter/Frequency |
| ON Voltage Level |
4.5 VDC~ 30 VDC |
| OFF Voltage Level |
< 1 VDC |
| Frequency Accuracy |
1 Hz ~ 500 KHz |
| Low Pass Filter |
Yes (1 ~32767 us) |
| Input Impedance |
200/500/1KΩ or none (5 KΩ) |
| I/O Expansion |
| I/O Type |
DN-PI-M |
| Mechanical |
| Dimensions (mm) |
30 x 85 x 115 |
| Weight |
300 g |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| F-8084 CR |
8-ch Isolated High Speed Pulse Input Redundant Module (RoHS) |
