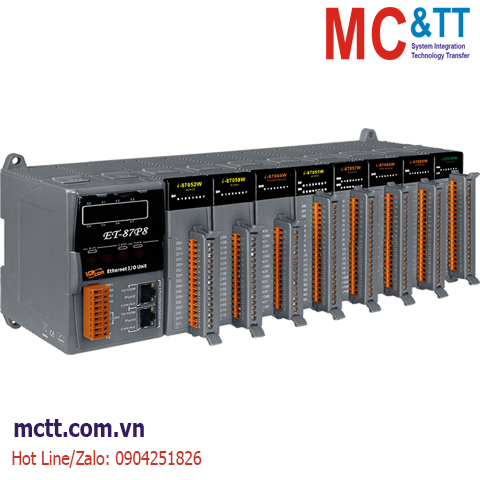

Module Ethernet DCON 8 khe cắm module I/O ICP DAS ET-87P8 CR

Module Ethernet DCON 8 khe cắm module I/O ICP DAS ET-87P8 CR

Features

• Two Ethernet Ports for Daisy-Chain Topology
• LAN Bypass Feature
• Hot Swap Allowed
• Auto Configuration
• LED Indicators for Fault Detection
• Push Buttons to Configure IP Address
• DCON Protocol (ASCII-based protocol)
• 7-Segment display x 4
• 8 Slots for I-87K Modules
• Operating Temperature: -25 ~ +75 °C

Introduction

ET-87P8 is a remote intelligent I/O expansion unit to expand I-87K series I/O modules over the Ethernet for industrial monitoring and controlling applications. It offers two Ethernet switch ports to form a daisy-chain topology. The daisy-chain feature allows ET-87P8 to connect in series to each other or other Ethernet devices. Uses can easily simplify the cabling and save installation space with the feature.

ET-87P8 is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75 °C). To simplify installation and maintenance of I/O modules, it provides many useful features, such as: hot swap allowed, auto confi guration, LED indicators for fault detection, dual watchdog to keep alive, programmable power on and safe values for safety.

There are more than 30 I/O modules supported with the unit, including analog input/output, digital input/output, counter, frequency I/O modules. We provide various software development kits (SDK) and demos, such as DLL, Labview driver, InduSoft driver, Linux driver, OPC server, etc. The I-87K series I/O modules plugged in the ET-87Pn can be easily integrated into variant software system.

Applications

• Factory, Building and Home Automation Remote Maintenance.
