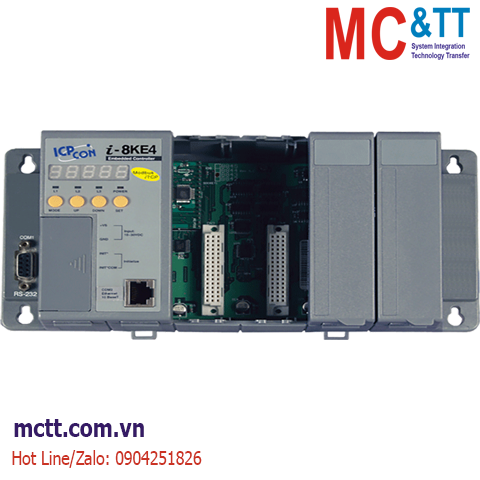

Module RS-232 + Ethernet Modbus RTU/TCP 4 khe cắm module I/O ICP DAS I-8KE4-MTCP-G CR

Module RS-232 + Ethernet Modbus RTU/TCP 4 khe cắm module I/O ICP DAS I-8KE4-MTCP-G CR

Dừng sản xuất, nâng cấp và thay thế bằng ET-8KP4-MTCP

Features

• Modbus TCP and RTU protocols
• Allowed a Maximum of 8 Host PCs Access Simultaneously
• 4 Slots for I-8K and I-87K series I/O modules
• Supports Auto Configuration for I/O modules
• Push Buttons to Configure IP Address
• Firmware Updateable via the Ethernet or RS-232
• Firmware Programmable (C language Modbus Lib Provided)
• Operating Temperature: -25 ~ +75 °C

Introduction

I-8KE4-MTCP-G is a remote I/O expansion unit to expand I-8K and I-87K I/O modules over the Ethernet for industrial monitoring and controlling applications. And it also has one or several built-in RS-232/485 ports to support Modbus RTU to link a HMI.

The units are designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75 °C). To simplify installation and maintenance of I/O modules, they provide many useful features, such as: auto confi guration, LED indicators for fault detection, CPU watchdog to keep proram alive, software watchdog to set safe values when communicaiotn is lost, programmable power-on and safe values for safety.

There are more than 30 I/O modules support with the units, including analog input/output, digital input/output, counter input, frequency input modules. Most SCADA software supports Modbus protocol, thus users can easily and quickly integrate the units to the SCADA software. Further more, we also provide nModbus.dll on Windows XP/Vista/7 and CE5/6 to VS.NET programmers.

Applications

• Factory, Building and Home Automation Remote Maintenance.

Specifications
