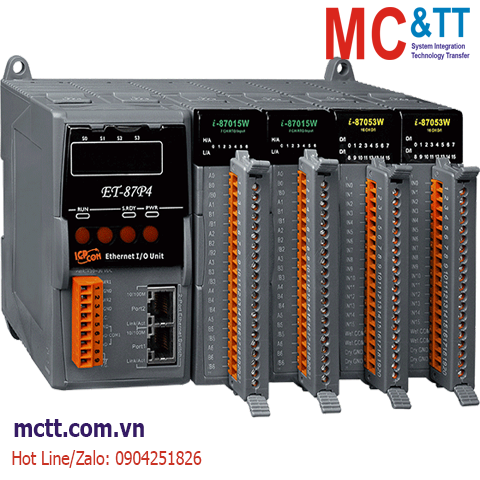

Module Ethernet DCON 4 khe cắm module I/O ICP DAS ET-87P4 CR

Chia sẻ:
Mã sản phẩm: ET-87P4
Thương hiệu: ICP DAS
Tình trạng:

4-slot Intelligent Ethernet I/O Expansion Unit (DCON Protocol)

Liên hệ
Mô tả

Module Ethernet DCON 4 khe cắm module I/O ICP DAS ET-87P4 CR

Features

• Two Ethernet Ports for Daisy-Chain Topology
• LAN Bypass Feature
• Hot Swap Allowed
• Auto Configuration
• LED Indicators for Fault Detection
• Push Buttons to Configure IP Address
• DCON Protocol (ASCII-based protocol)
• 7-Segment display x 4
• 4 Slots for I-87K Modules
• Operating Temperature: -25 ~ +75 °C

Introduction

ET-87P4 is a remote intelligent I/O expansion unit to expand I-87K series I/O modules over the Ethernet for industrial monitoring and controlling applications. It offers two Ethernet switch ports to form a daisy-chain topology. The daisy-chain feature allows ET-87P4 to connect in series to each other or other Ethernet devices. Uses can easily simplify the cabling and save installation space with the feature.

ET-87P4 is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75 °C). To simplify installation and maintenance of I/O modules, it provides many useful features, such as: hot swap allowed, auto configuration, LED indicators for fault detection, dual watchdog to keep alive, programmable power on and safe values for safety.

There are more than 30 I/O modules supported with the unit, including analog input/output, digital input/output, counter, frequency I/O modules. We provide various software development kits (SDK) and demos, such as DLL, Labview driver, InduSoft driver, Linux driver, OPC server, etc. The I-87K series I/O modules plugged in the ET-87Pn can be easily integrated into variant software system.

Applications

  • Factory, Building and Home Automation Remote Maintenance.

Specifications

Display
Type 5 x Digit 7 Segment LED Display
LED Indicators
Status 1 x Power, 1 x System, 1 x Auto Configuration, 4 x Slot
I/O Expansion
I/O Type I-87K series
Slots 4
COM Ports
Ports 1 x RS-232 (Console)
Protocol Modbus RTU/ASCII Slave
HMI
Push Button 4
Ethernet
Ports 2 x RJ-45, 10/100 Base-TX
Protocol DCON (ASCII Format)
Power
Input Range +10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs Yes
Consumption 6.0 W
Mechanical
Dimensions (mm) 188 x 132 x 111 (W x L x H)
Installation DIN-Rail, Wall mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ET-87P4     CR  4-slot Intelligent Ethernet I/O Expansion Unit (DCON Protocol) (RoHS)
