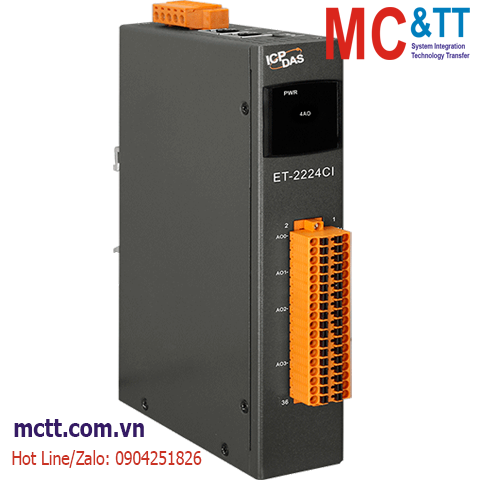

Module 2 cổng Ethernet Modbus TCP & MQTT 4 kênh AO ICP DAS ET-2224CI CR
Features
- Built-in Web Server
- Support Modbus TCP/UDP and MQTT Protocols
- 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
- Dual Watchdog
- I/O Pair Connection (Push and Pull)
- Open Wire Detection for Current Output
- Built-in I/O
- ET-2224CI: 4-channel Differential AO
- ET-2228CI: 8-channel Differential AO
- 3000 VDC Channel-to-Channel Isolation
Introduction
The ET-2224CI is channel to channel Isolation analog output module that includes 4 differential analog output channels, and allows a programmable output range on all analog outputs channels (0 to 5 V, +/-5 V, 0 to 10 V, +/-10 V, +4 to +20 mA or 0 to +20 mA). Each analog output channel can be configured for an individual range and provides an RF immunity level matching that defined by the IEC 61000-4-3 standard. Voltage and current outputs are programmable selectable, and the module also features per-channel open wire detection for +4 to +20 mA outputs, together with 4 kV ESD protection as well as 2500 VDC intra-module isolation. Options for configuring power-on and safe values are also included.
Applications
Specifications
| Software |
| Built-in Web Server |
Yes |
| CPU Module |
| CPU |
32-bit ARM |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
Ethernet: 1500 VDC
I/O: 2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
Run, Ethernet |
| Analog Output |
| Channels |
4 Differential |
| Type |
Voltage: 0 to +5 VDC, ±5 VDC, 0 to +10 VDC, ±10 VDC
Current: 0 to 20 mA, 4 to 20 mA |
| Resolution |
12-bit |
| Accuracy |
±0.1% of FSR |
| Short Circuit Protection |
Yes |
| DA Output Response Time |
10 ms per channel |
| Programmable Output Slope |
Voltage: 0.0625 to 512 V/Second
Current: 0.125 to 1024 mA/Second |
| Open Wire Detection |
For 4 to 20 mA only |
| Voltage Output Capability |
10 V @ 10 mA |
| Current Load Resistance |
500 Ω |
| Channel-to-Channel Isolation |
3000 VDC |
| Power-on Value |
Programmable |
| Safe Value |
Programmable |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass |
Yes |
| Security |
Password and IP Filter |
| Protocol |
Modbus TCP, Modbus UDP, and MQTT |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
6.0 W (max.) |
| Powered from Terminal Block |
+10 to +48 VDC |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
33 x 176 x 129 (W x L x H) |
| Installation |
DIN-Rail mounting / Wall mounting (Optional ASO-0015) |
| Environment |
| Operating Temperature |
-25 to +75 °C |
| Storage Temperature |
-40 to +80 °C |
| Humidity |
10 to 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ET-2224CI CR |
Ethernet I/O Module with 2-port Ethernet Switch, 4-ch Analog Outputs (RoHS) |
