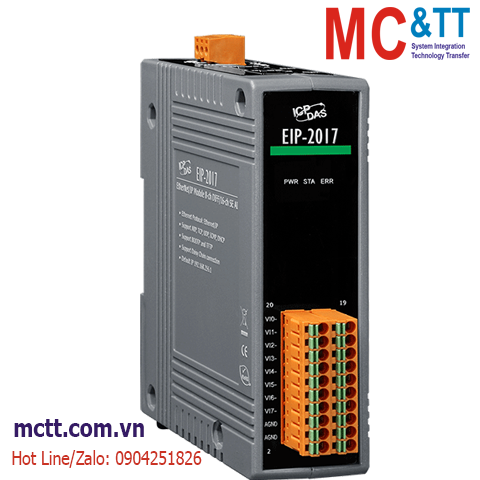

Module EtherNet/IP đầu vào tương tự AI 8 kênh DIFF / 16 kênh SE ICP DAS EIP-2017 CR

Features

  • Transfer protocol: EtherNet/IP
  • Powerful 32-bit MCU handles efficient network traffic
  • Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
  • Easy firmware update via Ethernet
  • Removable terminal block connector
  • Analog Input
    • Differential: 8 Channels
    • Single ended: 16 Channels
  • Internal resistors (125Ω) selectable in Differential mode

Introduction

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference. The EIP-2017 is an 8-ch Differential and 16-ch Single-Ended AI module. The module provides a jumper to switch Differential and Single-Ended mode. It supports voltage and current input type. The accuracy of the measurement is smaller than 0.1% FSR. The Module is designed as an EtherNet/IP adapter. Users can obtain the input status as well as the connection status of the EIP-2017 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.

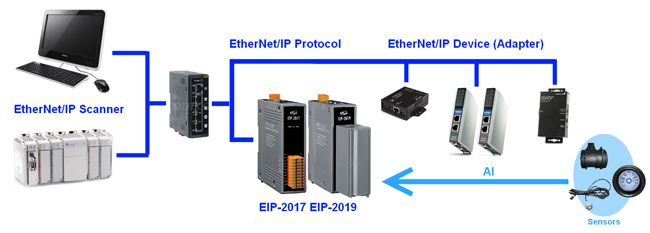

Applications

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote diagnosis
  • Testing Equipment

Specifications

Analog Input
Channels 8-ch differential or 16-ch single-ended
( Jump selectable)
Type Voltage : ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V
Current : 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA
(Jumper Selectable in DIFF mode. An external resistor is required in SE mode)
Resolution 16 bits
Accuracy +/-0.1%
Sampling Rate 10 samples/ second
Input Impedance Voltage Input: >400 kΩ, Current Input: 125 Ω
Overvoltage Protection 240 Vrms
Individual Channel Configuration Yes
Zero Drift +/-20uV/°C
Span Drift +/-25ppm/°C
Intra-module Isolation 3000 VDC
Ethernet
Ports 10/100 Base-TX, 8-pin RJ-45 x 2
Support daisy chain connection.
Protocol Ethernet/IP (Adapter)
Power
Consumption 3.8W
Mechanical
Dimensions (mm) 110 x 90 x 33 (H x W x D)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃

Download

Datasheet

Documents

Ordering Information

EIP-2017     CR  EtherNet/IP Module (Isolated 8-ch DIFF / 16-ch SE Analog Input) (RoHS)
