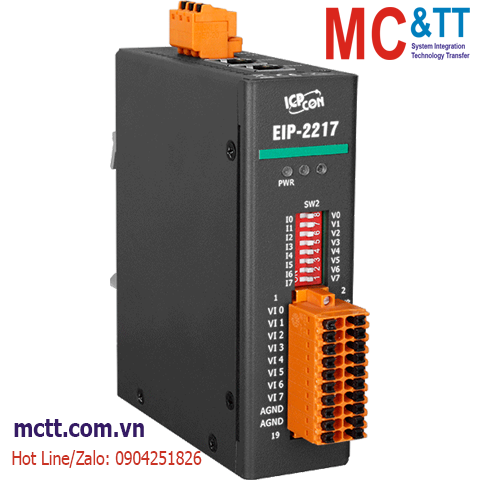

Module EtherNet/IP đầu vào tương tự AI 8 kênh DIFF / 16 kênh SE ICP DAS EIP-2217 CR
Features
- Transfer protocol: EtherNet/IP
- Powerful 32-bit MCU handles efficient network traffic
- Easy firmware update via Ethernet
- Analog Input
- Differential: 8 Channels
- Single ended: 16 Channels
- 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
Introduction

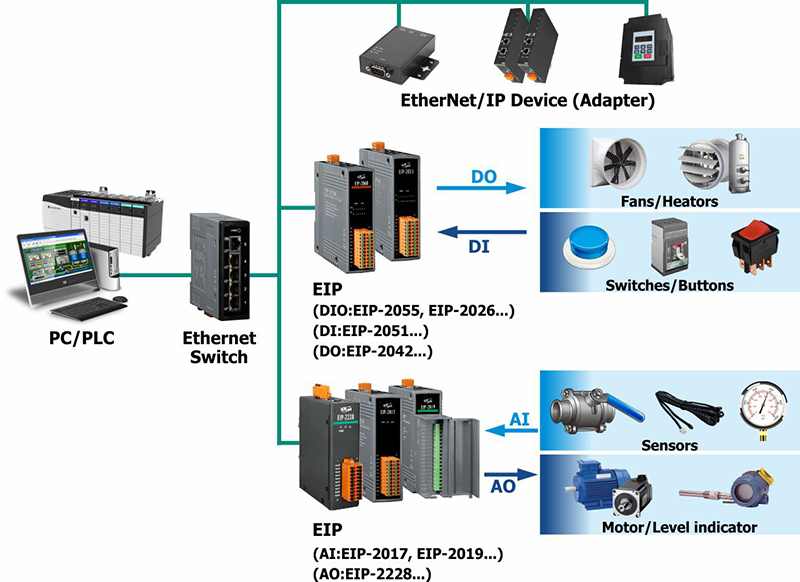

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference. The EIP-2217 is an 8-ch Differential and 16-ch Single-Ended AI module. The module provides a jumper to switch Differential and Single-Ended mode. It supports voltage and current input type. The accuracy of the measurement is smaller than 0.1% FSR. The Module is designed as an EtherNet/IP adapter. Users can obtain the input status as well as the connection status of the EIP-2217 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis
- Testing Equipment
Specifications
| CPU Module |
| CPU |
32-bit ARM |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
Ethernet: 1500 VDC
I/O: 3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
Run, Ethernet |
| Analog Input |
| Channels |
8-ch differential or 16-ch single-ended |
| Type |
Type Voltage: ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V
Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA
(DIP switch selectable - see Note 1) |
| Resolution |
16-bit |
| Accuracy |
Normal Mode: ±0.1% of FSR
Fast Mode: ±0.5% of FSR |
| Sampling Rate |
Normal Mode: 20 Hz (total channels)
Fast Mode: 200 Hz (total channels) |
| Input Impedance |
Voltage: 2 MΩ (Differential), 1 MΩ (Single-ended)
Current: 137 Ω (Differential) |
| Common Voltage Protection |
±200 VDC |
| Overvoltage Protection |
120 VDC |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
For 4 to 20 mA only |
| Ethernet |
| Ports |
10/100 Base-TX, 8-pin RJ-45 x 2
Support daisy chain connection. |
| LAN bypass |
Yes |
| Protocol |
Ethernet/IP (Adapter) |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
3.3W |
| Powered from Terminal Block |
+10 to +48 VDC |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
33 x 127 x 117 (W x L x H) |
| Installation |
DIN-Rail mounting / Wall mounting (Optional ASO-0015) |
| Environment |
| Operating Temperature |
-25 ~ +75 ℃ |
| Storage Temperature |
-40 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Specification Memo
Note 1: Differential wiring can be used for both voltage input and current input. Single-ended wiring can only be used for voltage input.
Download
Datasheet
Documents
Ordering Information
| EIP-2217 CR |
EtherNet/IP Module (Isolated 8-ch DIFF / 16-ch SE Analog Input) (RoHS) |
