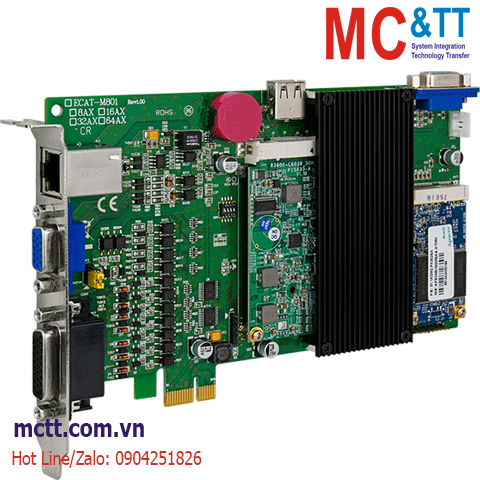

Card PCI Express EtherCAT Master 64-axis ICP DAS ECAT-M808-64AX CR
Features
• EtherCAT cycle time up to 0.5ms
• Up to 64-axis motion control
• Up to 512 slaves
• Synchronized motion (E-GEAR, E-CAM)
• Virtual axes
• Multi-axis linear interpolation
• On board 13 DI and 13 DO
• On board 2 encoder interfaces with compare trigger output
• Coupled Control System
> Built with a second CPU that supports EtherCAT communication retention technology, this system ensures seamless EtherCAT communication and uninterrupted process recipe, even in the event of an OS system or program crash.
Introduction
EtherCAT (Ethernet for Control Automation Technology) is an open, high-performance fieldbus system that makes Ethernet technologies available at the I/O level. EtherCAT provides flexible wiring, fast communication and many other nice features. It needs a master to control many slaves. ICP DAS provides PC master cards for users to build their motion related applications. This card can offer multi-axis motion and I/O control functions by its own built-in CPU. In this way, the CPU loading of PC can be reduced dramatically. In the mean while, ICP DAS also provides many I/O slave modules for users to choose from. Since EtherCAT technology is an industrial standard, those modules can work together in a system with 3rd-party EtherCAT slaves as well.
Accessories
Applications
• Motion control
• I/O control
• Data acquisition system
Click to view the Introduction of https://mctt.vn/ethercat-master-icp-das
Specifications
| Hardware |
| Connector |
RJ45 x1
DB-26 (Female)
DB-15 (Female) |
| Encoder Input |
| No. of Axes |
2 |
| Type |
Quadrant, CW/CCW, Pulse/Dir. |
| Resolution |
32-bit |
| Response Speed |
1 MHz |
| Compare Trigger Output |
2-ch |
| Digital Input |
| Channels |
13 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+19 V ~ + 24 V |
| OFF Voltage Level |
+11 V Max. |
| Isolation |
3000 VDC |
| Digital Output |
| Channels |
13 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+24 V |
| Load Current |
100 mA/ch |
| Isolation |
3000 Vrms |
| PC Bus |
| Type |
PCI Express x1 |
| EtherCAT |
| Ports |
1 x RJ-45 |
| No. of Axes |
Max. 64 |
| No. of Nodes |
Max. 512 |
| Data Transfer Medium |
Ethernet Cable (Min. CAT 5e), Shielded |
| Mechanical |
| Dimensions (mm) |
135 x 192 x 21.5 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60 °C |
| Storage Temperature |
-20 ~ +70 °C |
| Humidity |
0 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ECAT-M808-64AX CR |
PCI Express, 64-Axis EtherCAT MainDevice board with 13-ch DIO, 2-Axis Encoder (RoHS), without cable and daughter board. |
