Bản quyền phần mềm ICP DAS Win-GRAF PC Runtime

Chia sẻ:
Mã sản phẩm: Win-GRAF PC Runtime
Thương hiệu: ICP DAS
Tình trạng:

Windows based SoftPLC Runtime

Liên hệ
Mô tả

Bản quyền phần mềm ICP DAS Win-GRAF PC Runtime

Features

• Win-GRAF PC Runtime is a Windows based SoftPLC runtime
• Supports Windows 7, 8, 10, 11
• EtherCAT motion control:

1. Real-time motion control in conjunction with the EtherCAT master PCIe card  ECAT-M801
2. PLCopen function blocks for single and multiple axes control
3. Supports all EtherCAT servo/stepper drives with a CiA402 drive profile
4. Control up to 32-axis with 0.5 ms cycle time

•  Communication protocol:

1. EtherCAT
2. Modbus TCP/RTU
3. OPC UA server

• Allows third party software integration via shared memory
• HMI driver for eLogger and Indusoft (AVEVA Edge)
• Programming interfaces for C/C++/C#/LabVIEW

Introduction

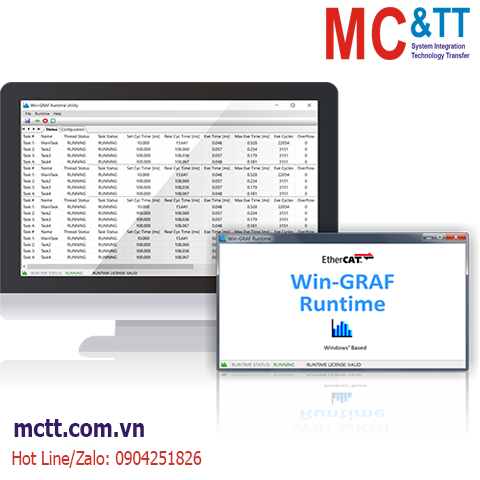

The Win-GRAF PC Runtime for Windows is a SoftPLC runtime environment designed for developing and executing SoftPLC applications on a standard/industrial PC with a Windows OS. After the installation of the runtime environment, the Windows PC can be programmed as a PLC using the Win-GRAF workbench.

The SoftPLC supports all five programming language defined by the IEC61131-3 standard, provides extensive programming libraries including motion control and fieldbus libraries.

Realtime motion and IO control can be implemented by using the ECAT-M801 series provided by ICPDAS. The ECAT-M801 device is a PCIe card with an integrated real-time EtherCAT master and a multi-axis motion kernel. The motion engine and the EtherCAT master are running on a dedicated processor in a real-time environment to achieve a time-deterministic control of the EtherCAT application. The motion control function blocks are designed according to PLCopen (part 1, 2, 4) and CiA402, are easy to use and greatly reduces learning and development time. The controller can handle up to 512 EtherCAT slaves and up to 32 EtherCAT servo/stepper drives. It supports the implementation of both simple and complex motion control, such as single- and multi-axis movements and interpolation.

A OPC UA server is part of the PLC runtime and is a secure, open, reliable mechanism for transferring information. OPC UA is used for horizontal communication between machines and vertical communication between the machine and higher-level IT system (SCADA, cloud). All standard OPC UA clients can be directly connected to the PLC application without customization thereby reducing integration or application software development costs.

Programming interfaces and shared memory communication are provided to allow Windows applications to directly and rapidly access the PLC data. This enables the system developer to integrate in house developed or third party Windows software, for instance, HMIs, data gathering and processing applications.

Embedded is a software package for configuration, programming and monitoring the SoftPLC application. In addition extensive programming examples are provided.

Accessories

Applications

• Motion control
• I/O control
• Data acquisition system

Click to view the Introduction of https://mctt.vn/ethercat-master-icp-das

Specifications

Software
OS SoftPLC runtime for Windows OS
Service • Support of eLogger and Indusoft
• Win-GRAF Workbench : Programming environment (not included in the package)
• PLCopen : Single axis and coordinated motion
• Shared memory DLL for 3rd party software integration
• HMI interfaces for eLogger and Indusoft
Utility EtherCAT Utility
Runtime configuration software
Interpolation
Circular any 2- or 3-axis
Linear any 2- or 32-axis
Ethernet
Built-In Web Server Web Server (eLogger or Indusoft required)
Protocol OPC UA Server
TCP, UDP
Slave/Master for : Modbus TCP/IP , Modbus RTU, ASCII
EtherCAT
Protocol EtherCAT Master (ECAT-M801 required)
No. of Axes Up to 32 axes
Cycle Time DC cycle time 0.5 ms

Download

Datasheet

Documents

Ordering Information

Win-GRAF PC Runtime  Windows based SoftPLC Runtime with one USB Dongle
