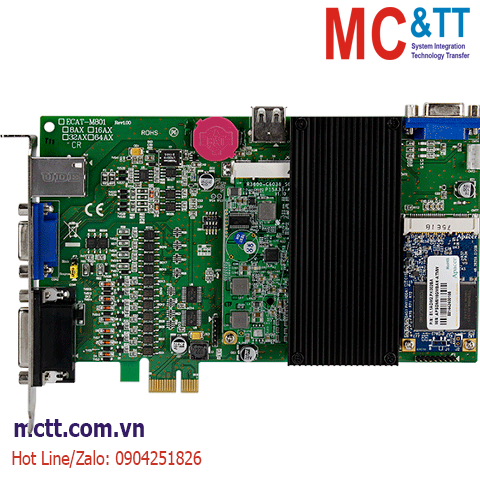

Card PCI Express EtherCAT Master 32-axis ICP DAS ECAT-M801-32AX CR

Chia sẻ:
Mã sản phẩm: ECAT-M801-32AX
Thương hiệu: ICP DAS
Tình trạng:

EtherCAT Master, 32-axis

Liên hệ
Mô tả

Card PCI Express EtherCAT Master 32-axis ICP DAS ECAT-M801-32AX CR

Features

• Up to 32-axis motion control
• Up to 64 slaves
• Synchronized motion (E-GEAR, E-CAM)
• Virtual axes
• Multi-axis linear interpolation
• On board 13 DI and 13 DO
• On board 2 encoder interfaces with compare trigger output

Introduction

EtherCAT (Ethernet for Control Automation Technology) is an open, high-performance fieldbus system that makes Ethernet technologies available at the I/O level. EtherCAT provides flexible wiring, fast communication and many other nice features. It needs a master to control many slaves. ICP DAS provides PC master cards for users to build their motion related applications. This card can offer multi-axis motion and I/O control functions by its own built-in CPU. In this way, the CPU loading of PC can be reduced dramatically. In the mean while, ICP DAS also provides many I/O slave modules for users to choose from. Since EtherCAT technology is an industrial standard, those modules can work together in a system with 3rd-party EtherCAT slaves as well.

Accessories

Applications

• Motion control
• I/O control
• Data acquisition system

Click to view the Introduction of https://mctt.vn/ethercat-master-icp-das

Specifications

Hardware
Connector RJ45 x1
DB-26 (Female)
DB-15 (Female)
Encoder Input
No. of Axes 2
Type Quadrant, CW/CCW, Pulse/Dir.
Response Speed 1 MHz
Resolution 32-bit
Compare Trigger Output 2-ch
Digital Input
Channels 13
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level +19 V ~ + 24 V
OFF Voltage Level +11 V Max.
Isolation 3000 VDC
Digital Output
Channels 13
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +24 V
Load Current 100 mA/ch
Isolation 3000 Vrms
PC Bus
Type PCI Express x1
EtherCAT
Ports 1 x RJ-45
No. of Axes Max. 32
No. of Nodes Max. 64
Data Transfer Medium Ethernet Cable (Min. CAT 5e), Shielded
Mechanical
Dimensions (mm) 135 x 192 x 21.5 (W x L x D)
Environment
Operating Temperature 0 ~ +60 °C
Storage Temperature -20 ~ +70 °C
Humidity 0 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ECAT-M801-32AX     CR  PCI Express, 32-Axis EtherCAT Master board with 13-ch DIO, 2-Axis Encoder (RoHS), without cable and daughter board.
