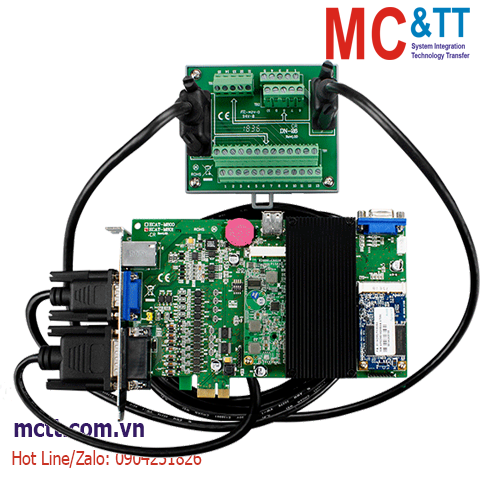

Card PCI Express EtherCAT Master 8-axis ICP DAS ECAT-M801-8AX/S CR
Features
- • Up to 8-axis motion control
• Up to 64 slaves
• Synchronized motion (E-GEAR, E-CAM)
• Virtual axes
• Multi-axis linear interpolation
• On board 13 DI and 13 DO
• On board 2 encoder interfaces with compare trigger output
Introduction
EtherCAT (Ethernet for Control Automation Technology) is an open, high-performance fieldbus system that makes Ethernet technologies available at the I/O level. EtherCAT provides flexible wiring, fast communication and many other nice features. It needs a master to control many slaves. ICP DAS provides PC master cards for users to build their motion related applications. This card can offer multi-axis motion and I/O control functions by its own built-in CPU. In this way, the CPU loading of PC can be reduced dramatically. In the mean while, ICP DAS also provides many I/O slave modules for users to choose from. Since EtherCAT technology is an industrial standard, those modules can work together in a system with 3rd-party EtherCAT slaves as well.

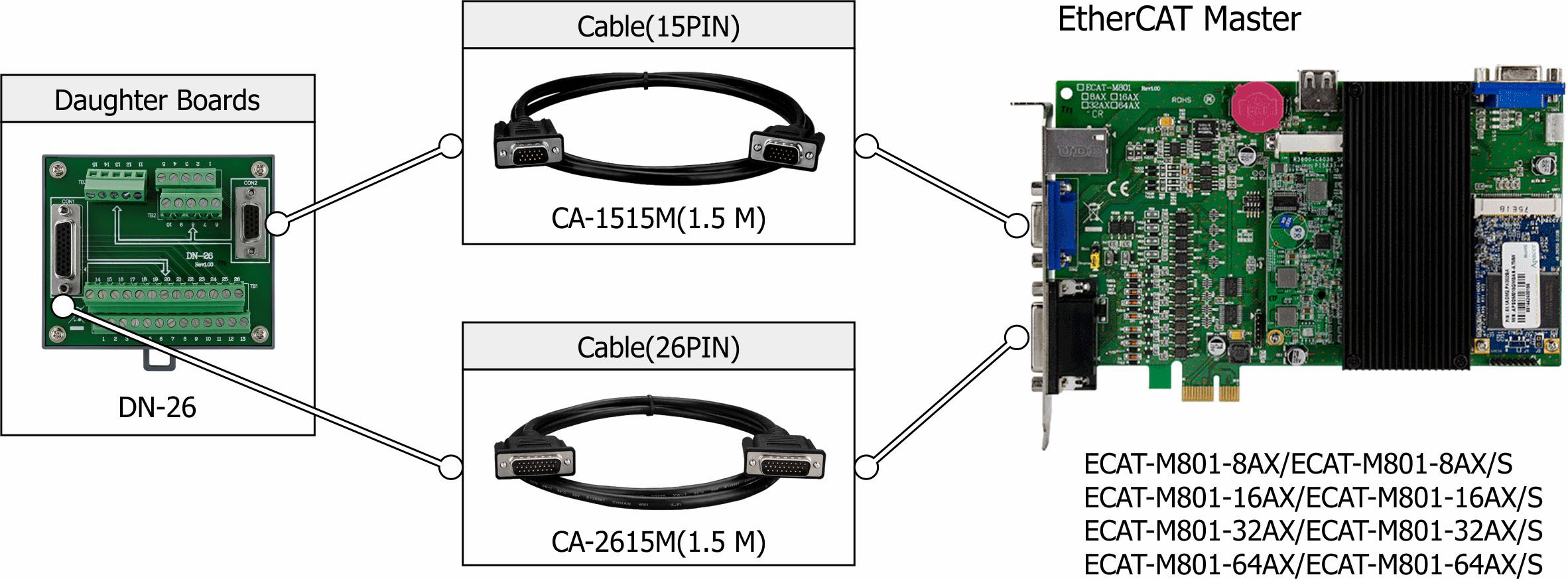

Accessories
Applications
• Motion control
• I/O control
• Data acquisition system
Click to view the Introduction of https://mctt.vn/ethercat-master-icp-das
Specifications
| Hardware |
| Connector |
RJ45 x1
DB-26 (Female)
DB-15 (Female) |
| Encoder Input |
| No. of Axes |
2 |
| Type |
Quadrant, CW/CCW, Pulse/Dir. |
| Response Speed |
1 MHz |
| Resolution |
32-bit |
| Compare Trigger Output |
2-ch |
| Digital Input |
| Channels |
13 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+19 V ~ + 24 V |
| OFF Voltage Level |
+11 V Max. |
| Isolation |
3000 VDC |
| Digital Output |
| Channels |
13 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+24 V |
| Load Current |
100 mA/ch |
| Isolation |
3000 Vrms |
| PC Bus |
| Type |
PCI Express x1 |
| EtherCAT |
| Ports |
1 x RJ-45 |
| No. of Axes |
Max. 8 |
| No. of Nodes |
Max. 64 |
| Data Transfer Medium |
Ethernet Cable (Min. CAT 5e), Shielded |
| Mechanical |
| Dimensions (mm) |
135 x 192 x 21.5 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60 °C |
| Storage Temperature |
-20 ~ +70 °C |
| Humidity |
0 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ECAT-M801-8AX/S CR |
PCI Express, 8-Axis EtherCAT Master board with 13-ch DIO, 2-Axis Encoder (RoHS), including a DN-26, a CA-12515M and a CA-2615M. |
