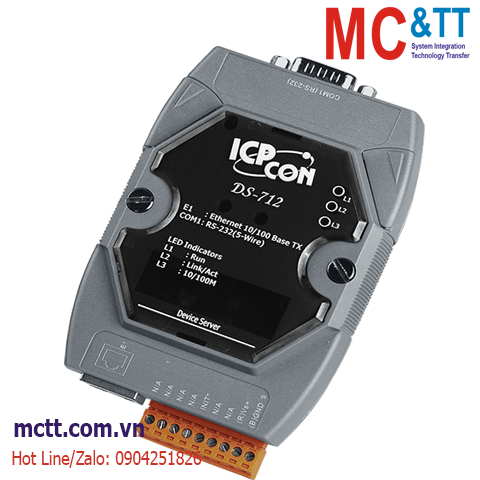

Bộ chuyển đổi 1 cổng RS-232 sang Ethernet ICP DAS DS-712 CR
Feature
- Incorporate Serial Devices in an Ethernet network
- "Virtual COM" Extend COM Ports
- Application Modes: Virtual COM, TCP Server, TCP Client
- VxComm Utility supports 32/64-bit Windows 7 SP1/10/2012/2016
- High Performance Device Server
- Watchdog Timer suitable for use in harsh environments
- Power Reverse Polarity Protection
- Serial Port +/-4 kV ESD Protection Circuit
- Built-in High Performance MiniOS7 from ICP DAS
- 10/100 Base-TX Ethernet, RJ-45 Port (Auto-negotiating, auto MDI/MDI-X, LED indicator)
- Low power consumption
- Palm-Sized
Introduction
The DS-700 is a series of Serial-to-Ethernet Device Servers that are designed for linking RS-232/422/485 devices to an Ethernet network. By using the VxComm Driver/Utility, the built-in COM port of the DS-700 series can be virtualized to a standard PC COM port in Windows. By virtue of its protocol independence, a small size and flexibility, the DS-700 series meets the demands of virtually any network-enabled application.
The DS-712 is equipped with a male DB-9 connector and supports a 5-wire RS-232 port, while the DS-715 is equipped with a removable terminal block connector and supports a 4-wire RS-422 port or a 2-wire RS-485 port with 2000 Vrms isolation.
Application
• Factory Automation
• Building Automation
• Home Automation
Specifications
| CPU Module |
| CPU |
80186-80 MHz or compatible |
| EEPROM |
16 KB; Data return: 40 years. |
| Flash |
512 KB |
| SRAM |
512 KB |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x Power
2 x Ethernet |
| COM Ports |
| Ports |
1 x 5-wire RS-232 |
| Baud Rate |
115200 bps Max. |
| Bias Resistor |
Yes, 1 KΩ |
| Parity |
None, Even, Odd, Mark, Space
None parity is required when using 8 data bits and 2 stop bits on COM1. |
| Data Bit |
7, 8: for COM1 |
| Stop Bit |
1, 2: for COM1 |
| Node Address |
254 (max.) |
| Ethernet |
| Ports |
10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
2.0 W |
| Powered from Terminal Block |
12 VDC ~ +48 VDC (non-regulated) |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
72 mm x 118 mm x 35 mm (W x H x D) |
| Installation |
DIN-Rail or Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
5 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| DS-712 CR |
Serial-to-Ethernet Device Server with 1-port RS-232 (RoHS) |
