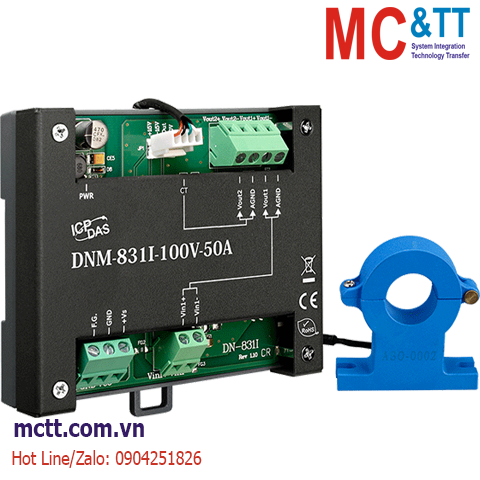

Bộ chuyển đổi 1 kênh điện áp 100V + 1 kênh dòng điện 50A sang tương tự ICP DAS DNM-831I-100V-50A CR

Chia sẻ:
Mã sản phẩm: DNM-831I-100V-50A
Thương hiệu: ICP DAS
Tình trạng:

1 Channel Voltage Attenuator (100V) and 1 Channel Current Transformer (50 A) (Metal)

Liên hệ
Mô tả

Bộ chuyển đổi 1 kênh điện áp 100V + 1 kênh dòng điện 50A sang tương tự ICP DAS DNM-831I-100V-50A CR

Feature

• High Voltage Input and High Current Input Measurement
• Three Way Isolation
• Linear Attenuation Ratio
• High Input Impedance
• Easily wire connection

Introduction

The DN-831I-100V-50A is 1-channel voltage attenuator and 1-channel current transformer. The maximum voltage input range is from ±100 V can be attenuated to ±10 V and the maximum current input range is from ±50 A can be attenuated to ±10 V. It provides 3000 VDC intra-modules isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS etc. to measure the high current.



Application

Specifications

EMS Protection
ESD (IEC 61000-4-2) ±4 kV contact for power line, input and output channels, ±8 kV air for random point
Surge (IEC 61000-4-5) ±3 kV for power liner
CT
Type Clip
Inside Diameter Φ21 mm
Leading Cable 1.5 m
Analog Input
Channels High Current: 1
High Voltage: 1
Type AC/DC Current
AC/DC Voltage
Range High Current: ±50 A
High Voltage: ±100 VDC
Accuracy High Current: 1% of FSR
High Voltage: 1% of FSR
Bandwidth High Current: 0 ~ 50 KHz
High Voltage: 20 Hz ~ 20 kHz
Isolation High Current: 2.5 KV @ 50 (60) HZ/1 min
Analog Output
Channels High Current: 1
High Voltage: 1
Type AC/DC Current
AC/DC Voltage
Range • High Current: ±10 VDC or 10 VAC
• High Voltage: ±10 VDC or 10 VAC
Power
Input Range +10 VDC ~ +30 VDC
Consumption 1.8 W
Mechanical
Casing Metal
Dimensions (mm) 103 x 93 x 29 (W x L x D)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

DNM-831I-100V-50A     CR  1 Channel Voltage Attenuator (100V) and 1 Channel Current Transformer (50 A) (Metal) (RoHS)
Includes CA-040415 Cable and ASO-0002 Current Transformer
