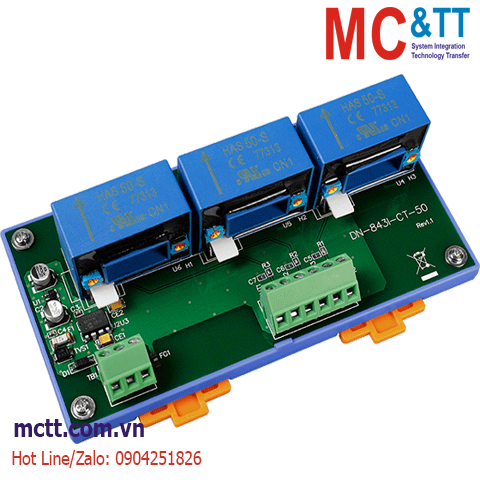

Bộ chuyển đổi 3 kênh đầu vào đo dòng 50A sang tương tự ICP DAS DN-843I-CT-50 CR
Feature
• AC/DC Source Input
• Linear Attenuation Ratio
• High Current Input Measurement
• Isolation Input
• Easily Wire Connection
Introduction
The maximum input range is from ±1 A to +/- 50 A and can be attenuated to from ±1.6 V to ±10 V. The "I" version provide 3000 VDC intra-modules isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017 and I-87017 etc. to measure the high current.
Application
Specifications
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV contact for power line, input and output channels, ±8 kV air for random point |
| CT |
| Type |
Solid Core (closed) |
| Inside Diameter |
20.4 X 10.4 mm |
| Analog Input |
| Channels |
3 |
| Type |
AC/DC Current |
| Range |
±50 A |
| Accuracy |
1% of FSR |
| Bandwidth |
50 KHz |
| Input Impedance |
> 1 MΩ |
| Channel-to-Channel Isolation |
Yes, 3000 Vrms |
| Intra-module Isolation |
3000 VDC |
| Analog Output |
| Channels |
3 |
| Type |
AC/DC Voltage |
| Range |
±4 Vpp |
| Power |
| Input Range |
+10 VDC ~ +24 VDC |
| Consumption |
1.2 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
148 x 83 x 39 (W x L x D) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| DN-843I-CT-50 CR |
3-channel 50 A Current Transformer (RoHS) |
