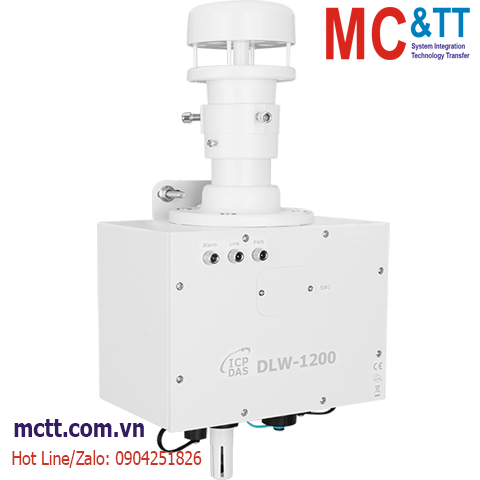

Trạm thời tiết đo thông số khí tượng tốc độ gió, hướng gió, áp suất khí quyển, đo độ sáng, cao độ mức nước biển, nhiệt độ, độ ẩm ICP DAS DLW-1200 CR

Chia sẻ:
Mã sản phẩm: DLW-1200
Thương hiệu: ICP DAS
Tình trạng:

Mini weather station can measure weather information and air quality

Liên hệ
Mô tả

Trạm thời tiết đo thông số khí tượng tốc độ gió, hướng gió, áp suất khí quyển, đo độ sáng, cao độ mức nước biển, nhiệt độ, độ ẩm ICP DAS DLW-1200 CR

Feature

  • Real-time measurement of outdoor weather information and hazardous gas decetion.
  • Molding in one, can be matched with straight/ horizontal rod body, easy to install
  • Provide RS-485 and Ethernet (PoE) communication interfaces
  • Support Modbus RTU/TCP, MQTT communication protocols
  • Can be integrated with the WISE controller to set alarm notifications to keep you informed
  • Combining with the ExoWISE, simple logic control settings

Introduction

Mini Automated Surface Observation Area:

The minimized sensors of gas/powder pollution are placed on PCB to help monitor the air quality index to identify the source of the contamination.

Positive and Negative Pressure Ventilation System:

Active ventilation produces the pressure difference between the inside and outside of the module, which causes airflow, creates turbulence, mixes the air evenly, and makes the data precise.

IP Protection Rating:

The system has an IP54 rating for the fan intake and output, which can withstand water ingress from a low angle during a storm. There is also a waterproof connector for RS-485 and Ethernet (supports PoE), to ensure the device will work in extreme conditions.

Replaceable Filter Patch:

The intake and output filters are replaceable. The 45ppi filter sponge prevents dust particles and cotton wool from entering, thereby extending the life of the gas sensor chips. It is only necessary to replace the filter patch by yourself during regular maintenance, which significantly reduces the repair times.

Application

• Combination of the IoT & agricultural technology

The minimized sensors of gas/powder pollution are placed on PCB to help monitor the air quality index to identify the source of the   Smart greenhouses maintain the best growing conditions for plants through accurate data collection and a greenhouse temperature control system combined with an IoT system that automatically controls light, temperature, watering and CO2 levels. In addition to providing gas and weather data for the green house IoT system , the DLW-1000 can be connected with PM-3133, a smart power meter that collects energy data, analyzes greenhouse energy consumption, and sends the data back to the control center via WISE-5231M-4GE, which realizes the combination between the IoT and agricultural technology.

• Data Management Solution for Multiple Stations

In India, since many tributaries of the Indus River Basin are separated by mountains, combined with a large territory of the country and poor communication infrastructure in some areas, domestic and industrial water use directly rely on pumping stations. Taking pumping stations in the drainage basin as a basis, ICP DAS uses WISE-5231M-4GE, equipped with edge computing and remote maintenance functions, to collect information on water quality, flow r ate, water level, and valve monitoring status in the pumping stations. Data can be sent back to the control center in Mumbai through the 4G, and users can simultaneously and remotely monitor and maintain their equipment. Besides this, adding a DLW-1000 to pumping stations enables users to notice climate changes in advance; coupled with the real-time data, the controlling center can evacuate the village before a heavy rainfall.

• Air quality and weather data collecting solution for marine affairs and ports

As marine transportation plays a critical role in international trade, marine affairs and ports have become indicators of productivity. For example, the Greenport Impact Assessment considers the air quality of a port in real-time. The monitored parameters are exhaust emissions from ships, machinery, and vehicles fueled by diesel or heavy fuel oil. The industrial DLW-1000 from ICP DAS can measure wind speed, wind direction, precipitation, illuminance, and collect data on H2S, NOX, and PM2.5. We can implement air pollution reduction policies in commercial ports to improve air quality by combining weather data and A IS in adjacent seas surrounding Taiwan.

• Large scale farming

The DLW-1000 can collect data on temperature, humidity, precipitation, illumination, gas, wind direction and speed. The collected data helps to analyze the problem of planting, seedling, irrigation, fertilization of plants, protection from pests and diseases, and also helps to set up the traceability system to improve the quality of the crop. Meanwhile, the edge controller WISE-5231M-4GE, combined with the data acquisition monitoring module M-7000, can collect data from environmental sensors in remote areas where communication is poor. The combination of WISE-5231M-4GE and M-7000 integrates collection, transformation, and management of environmental data to demonstrate the convenience that smart farming brings.

• Industrial exhaust emissions monitoring

As the global trend of ESG becomes more and more popular, t o find a balance between energy and environmental protection, ICP DAS suggests strict control of exhaust emissions, together with the measurement and assessment of air quality. The DLW-1000 can be easily installed and used anywhere, for example, in smoke stacks with a height of 50 or 100m, as well as in storage tanks for raw materials in the petrochemical industry. In addition to temperature, humidity, pressure, illuminance, precipitation, wind direction and speed, the DLW-1000 also measures PM1/2.5/10, CO, CO2 ,O2 , NH3 , H2S, TVOC, HCHO and more. Combining the DL W-1000 with the edge controller WISE-5231M-4GE, you can perform logic control, data collection and transmission, device management, and problem reporting wirelessly.

Specifications

CPU Module
Watchdog Timer Yes, Module, Communication (Programmable)
LED Indicators
Status PWR: Green for normal Operation
Link: Green for the Ethernet-linked
Alarm: Red for an alarm condition
Temperature Measurement
Range -40 ~ +80℃
Resolution 0.1℃
Accuracy ±0.5℃
Humidity Measurement
Range 0 ~ 100%
Resolution 0.1%
Accuracy ±2%
Life Time 10 years
System
Alarm Weather Monitoring
(Wind Speed, Wind Direction, RH/T)
Real Time Clock Yes
Data Logger Yes
Relay Output PhotoMOS Relay, Form Ax4, SPST 100VDC @ 1A
Wind
Rnge 0 ~ 40 m/s
Accuracy 5%
Resolution 0.01 m/s
Wind Direction
Range 0 ~ 359°
Accuracy <3°
Resolution
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Protocol Modbus RTU
Ethernet
Ports 10/100 Base-TX, 8-Pin RJ-45 x1
Security Password and IP Filter
Protocol Modbus TCP and MQTT
Power
Consumption PoE: 1.10 W Max
Non-PoE: 0.88 W Max
Powered from PoE IEEE 802.3af, Class 1 (48 V)
Powered from Terminal Block +12 to +48 VDC
Mechanical
Dimensions (mm) 190 x 134 x 389 (W x L x H)
Installation U-bolt or Wall Mounting
Ingress Protection Rating IP67
Weight 2.45 KG
Environment
Operating Temperature -20 to +50°C
Storage Temperature -30 to +75°C
Humidity 10% to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

DLW-1200     CR  Mini weather station can measure weather information (wind speed, wind direction, temperature, humidity) (RoHS)
