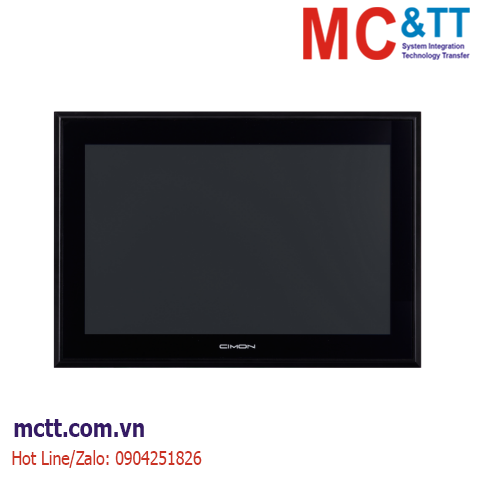

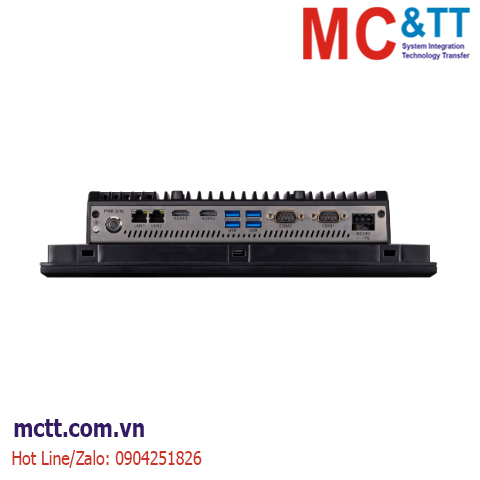

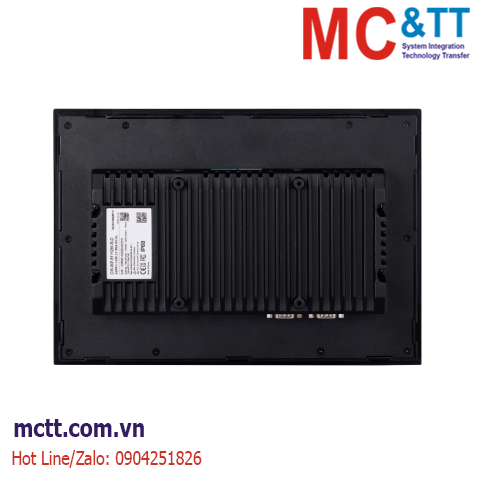

Máy tính công nghiệp màn hình cảm ứng 12.1 inch Cimon CM-iNP-51112W-C-D (Intel Core™ i5-1145G7E/ 8 GB/ SSD 500GB/ 2 LAN/ 2 COM/ 4 USB)
CIMON 50000 Series IPC is an industrial computer that runs on Windows 11 IoT/ Windows 11 Pro OS and an Intel CPU. CIMON’s Industrial PC differs from traditional PCs by accounting for your automation needs, including device endurance, user experience, and task execution
Tính năng
- 12.1-inch Display
- 11th Gen Intel® Core™ i5-1145G7E processor, Quad Core, 1.5 GHz (FANLESS)
- Capacitive Multi-Touch
- 1280 x 800 Resolution
- 600 cd/m² Luminance
- 8 GB RAM
- 500 GB SSD
- 24 VDC Rated Voltage
- 2x Ethernet
- 2x Serial
- 4x USB 3.0
- 2x HDMI
- -20 – +60°C Operating Temperature
- UL, CE, FCC, KC Agency Approvals
- IP68/IP69K (Front) Protection Class
Thông số kỹ thuật
| Resistive |
CM-iNP-51112W-R-D |
CM-iNP-51115W-R-D |
CM-iNP-51121W-R-D |
| Capacitive |
CM-iNP-51112W-C-D |
CM-iNP-51115W-C-D |
CM-iNP-51121W-C-D |
| Enclosure |
Front |
Aluminum |
| Rear |
Aluminum |
| CPU |
11th Gen Intel® CoreTM i5-1145G7E processor, Quad Core, 1.5 GHz (FANLESS) |
| Memory |
8GB DDR4 SDRAM (Max. 32 GB) |
| Storage |
SSD 500GB (M.2 / NVMe) |
| Extra Storage Option |
SSD 250 GB (2.5” / SATA) |
| Operating System |
Windows 11 IoT Enterprise (Standard) / Windows 11 Pro |
| Graphics |
Intel® Iris® Xe Graphics |
| LCD Size |
12.1 inch |
15.6 inch |
21.5 inch |
| Resolution |
1280x800 WXGA (16:10) |
1920x1080 FHD (16:9) |
| Backlight |
LED |
| Luminance |
600cd/m² |
450cd/m² |
400cd/m² |
| Backlight Life |
50,000 hours |
| Touch |
Resistive / Capacitive |
| Display Ports |
2 x HDMI port |
| COM 1 |
1 x RS232/422/485 port (default: RS232) |
| COM 2 |
1 x RS-232 port |
| Ethernet |
Gigabit Ethernet, 2 x ports |
| USB |
4 x USB 3.0 ports |
| Power Supply |
DC 24 V |
| Power Consumption |
69W (MAX : 75W) |
71W (MAX : 77W) |
74W (MAX : 81W) |
| Utility Program |
UWF, Winclon (Recovery System) |
Agency
Approvals |
CE |
Electromagnetic Compatibility Directive 2014/30/EU (EMC) |
| FCC |
The 47 CFR Part15 Of FCC Requirement |
| KC |
Registration of Broadcasting and Communication Equipments |
Protection
Class |
IP68 (front), IP69K (front) |
IP66 (front), IP69K (front) |
| Resistive |
CM-iNP-51112W-R-D |
CM-iNP-51115W-R-D |
CM-iNP-51121W-R-D |
| Capacitive |
CM-iNP-51112W-C-D |
CM-iNP-51115W-C-D |
CM-iNP-51121W-C-D |
| Operating Temperature |
-20°C – +60°C (-4 – +140 °F) |
0°C – +60°C
(32 – +140 °F) |
| Storage Temperature |
-20°C – +80°C ( -4 – +176 °F) |
-20°C – +60°C
(-4 – +140 °F |
| Operating Humidity |
10%–90% RH (Below 29℃, No dew condensation) |
| Storage Humidity |
10%–90% RH (Below 39℃, No dew condensation) |
| Model |
All iNP-51112W Models |
All iNP-51115W Models |
All iNP-51121W Models |
| Dimensions |
314.9 x 221.2 x 68.6 mm
(12.4 x 8.71 x 2.7 in) |
394.2 x 248.5 x 68.6 mm
(15.52 x 9.78 x 2.7 in) |
545.2 x 334.8 x 72.9 mm
(21.46 x 13.18 x 2.87 in) |
| Panel Cut |
305 x 212 mm (12.01 x 8.35 in) |
385 x 239 mm (15.16 x 9.41 in) |
536 x 326 mm (21.10 x 12.83 in) |
| Weight |
2.8 kg (6.17 lb) |
3.6 kg (7.94 lb) |
6.6 kg (14.55 lb) |
| VESA Mount |
100 x 100 mm (3.94 x 3.94 in) |
Thông tin đặt hàng
Intel® Core™ i5-1145G7E processor, 12.1" (1280x800 WXGA (16:10)) Capacitive touch, 500GB SSD, 8GB RAM, DC24V, Win 11 IoT Ent included, 2 LAN/ 2 COM/ 4 USB
Panel IPC Options & Add-ons
| Model |
Description |
| 16GB RAM (16) |
16GB RAM |
| 32GB RAM (32) |
32GB RAM |
| 500GB SSD(S5) |
500GB SATA3 SSD |
| 1TB SSD(S1T) |
1TB SATA3 SSD |
| Windows 11 Pro(W11P) |
Windows 11 Pro instead of Windows 11 IoT Enterprise |
| Linux Ubuntu(LU) |
Linux Ubuntu instead of Windows 11 IoT Enterprise |
Tài liệu
Datasheet
