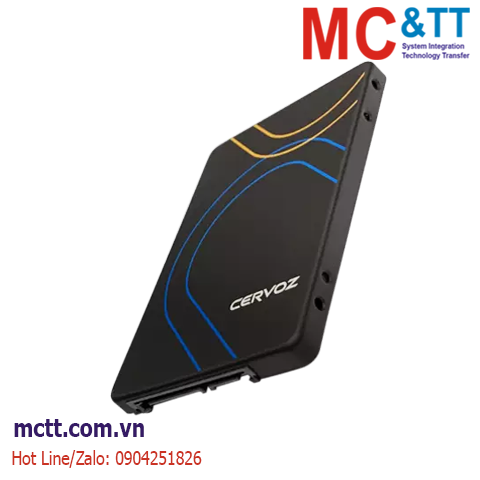

Ổ cứng SSD công nghiệp 2.5" SATA III 6.0Gb/s 128GB Cervoz CIS-2ST380MMF128GS
Cervoz Industrial 2.5" SATA SSD T380 family is a high capacity Solid State Disk product that is in compliance with the 2.5" form factor and SATA III standards. The device design is based on the 7pin for data segment and 15pin for power segment standards.
T380 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from. T380 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.
Features
- Compliant with SATA III 6.0Gb/s
- 3D TLC NAND flash memory
- Capacity: 64GB ~ 2TB
- End-to-End data protection
- SLC write cache technology
- Operating as boot disk
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
Specifications
| Series |
Titan Series (TLC) |
| Form Factor |
2.5 inch |
| Interface |
SATA III 6.0Gb/s |
| Connector |
SATA (7 + 15 pin) |
| NAND Flash Type |
3D TLC |
| Capacity |
64GB ~ 2TB |
| Dimension (LxWxH/mm) |
100.00 x 69.85 x 7.00 |
| Sequential Read |
up to 560MB/s |
| Sequential Write |
up to 505MB/s |
| ECC Scheme |
LDPC |
| MTBF |
>3,000,000 hours |
| Terabyte Written (TBW) |
64GB : 109, 128GB : 219, 256GB : 438, 512GB : 875, 1TB : 1750, 2TB : 3500 |
| Operating Temperature: Standard Temp. |
0°C ~ 70°C |
| Operating Temperature: Wide Temp. |
–40°C ~ 85°C |
| Supply Voltage |
5V DC +/-5% |
| Power Consumption |
Active mode: < 1450mW, Idle mode: < 200mW |
| Specialty Technology |
End-to-End data protection, SLC write cache technology |
| Conformal Coating |
Optional |
| Anti-Vibration Fill |
Optional |
| FlashMonitor |
✓ |
Ordering Info
| Standard Temp. (0°C ~ 70°C) |
Wide Temp. (-40°C ~ 85°C) |
Capacity |
| CIS-2ST380MLF064GS |
CIS-2ST380MLF064GW |
64GB |
| CIS-2ST380MMF128GS |
CIS-2ST380MMF128GW |
128GB |
| CIS-2ST380MMF256GS |
CIS-2ST380MMF256GW |
256GB |
| CIS-2ST380MOF512GS |
CIS-2ST380MOF512GW |
512GB |
| CIS-2ST380MOF001TS |
CIS-2ST380MOF001TW |
1TB |
| CIS-2ST380MOF002TS |
CIS-2ST380MOF002TW |
2TB |
Tài liệu
Industrial_SSD_ 2.5inch_SATA_T380_Datasheet
