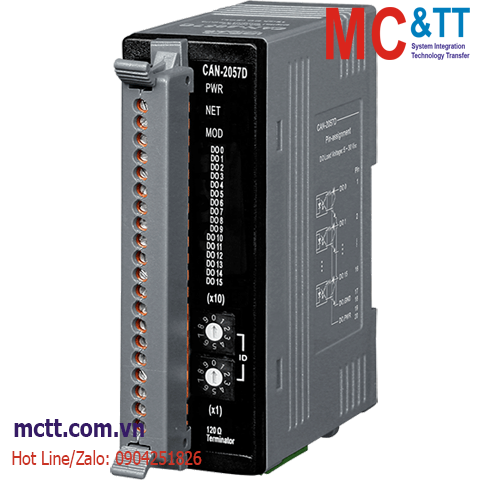

Module DeviceNet Slave 16 kênh DO ICP DAS CAN-2057D CR

Module DeviceNet Slave 16 kênh DO ICP DAS CAN-2057D CR

Feature

• DeviceNet general I/O slave devices
• Group 2 Only Server (non UCMM-capable)
• Support Predefined Master/Slave Connection Set
• Connection supported:
  • 1 connection for Explicit Messaging
  • 1 connection for Polled I/O
  • 1 connection for Bit-Strobe I/O connection
• Support DeviceNet heartbeat and shutdown messages
• Provide EDS file for DeviceNet master interface
• Support Application: Drive Relay, Resistance Load
• ESD Protection 4 kV Contact for each channel

Introduction

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2057D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital output status and set the configuration via DeviceNet EDS file. The CAN-2057D has 16 Digital output channels with Open Collector output type and can be used to develop powerful and cost effective digital control system. By owing to the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. For more information about the DeviceNet master interfaces and other DeviceNet products, please refer to the following web site.

Application

We have communicated with the following DeviceNet masters or gateways.

• Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
• OMRON CJ1W-DRM21
• OMRON CS1W-DRM21-V1
• OMRON C200HW-DRM21-V1
• OMRON 3G8F7-DRM21-E
