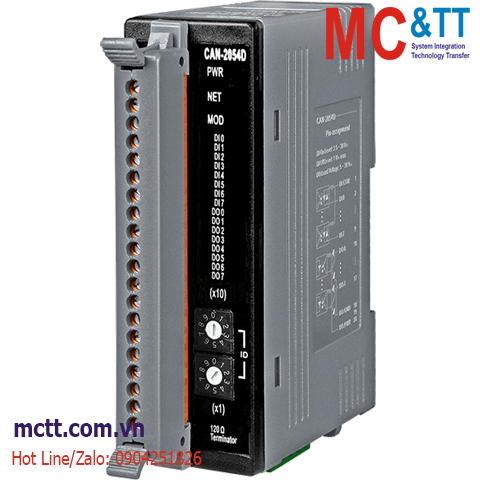

Module DeviceNet Slave 8 kênh DI + 8 kênh DO ICP DAS CAN-2054D CR

Chia sẻ:
Mã sản phẩm: CAN-2054D
Thương hiệu: ICP DAS
Tình trạng:

DeviceNet Slave Module of 8-channel Isolated (Wet) DI, 8-channel Isolated (Sink, NPN) DO

Liên hệ
Mô tả

Module DeviceNet Slave 8 kênh DI + 8 kênh DO ICP DAS CAN-2054D CR

Feature

  • DeviceNet general I/O slave devices
  • Comply with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
  • Group 2 Only Server (non UCMM-capable)
  • Support Predefined Master/Slave Connection Set
  • Connection supported:
    • 1 connection for Explicit Messaging
    • 1 connection for Polled I/O
    • 1 connection for Bit-Strobe I/O connection
  • Support DeviceNet heartbeat and shutdown messages
  • Provide EDS file for DeviceNet master interface

Introduction

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2054D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital I/O status and set the configuration via DeviceNet EDS file. This module has 8-channel isolated sink/source input and 8-channel isolated sink output. It can be applied to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements.

Application

We have communicated with the following DeviceNet masters or gateways.

  • Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
  • OMRON CJ1W-DRM21
  • OMRON CS1W-DRM21-V1
  • OMRON C200HW-DRM21-V1
  • OMRON 3G8F7-DRM21-E

Specifications

LED Indicators
Status 1 x Power
2 x DeviceNet status
Digital Input
Channels 8
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level +3.5 ~ +30 VDC
OFF Voltage Level +1 VDC Max.
Input Impedance 3 kΩ, 0.3 W
Digital Output
Channels 8
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +5 ~ +30 VDC
Load Current 700 mA per channel
Intra-module Isolation 3750 Vrms
DeviceNet
Ports 1
Connection Supported 1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
Baud Rate 125 kbps, 250 kbps, 500 kbps
Terminal Resistor Switch for 120 Ω terminal resistor
Specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
Node ID 0 ~ 63
Shutdown Message Yes
Heartbeat Message Yes
Subscribe Group 2 Only Server
Power
Input Range +10 VDC ~ +30 VDC
Consumption 1.5 W
Mechanical
Dimensions (mm) 32.3 x 99 x 77.5 ( W x L x H )
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

CAN-2054D     CR  DeviceNet Slave Module of 8-channel Isolated (Wet) DI, 8-channel Isolated (Sink, NPN) DO (RoHS)
