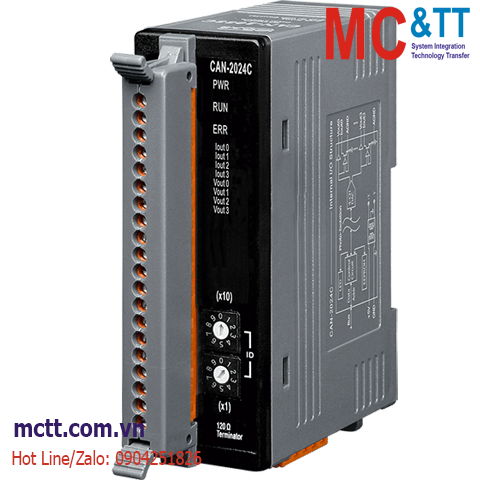

Module CANopen Slave 4 kênh AO ICP DAS CAN-2024C CR

Feature

  • NMT Slave
  • Read-Back Accuracy ±1% of FSR
  • Provide default EDS file
  • ESD Protection 4 KV Contact for each channel
  • Support Power Supply +10 ~ +30 VDC
  • Support CiA DS-301 v4.02, DSP-401 v2.1
  • Support PDO Mapping

Introduction

CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network system, such as industrial machine control , vehicle control system, factory automation, medical equipment control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2024C module follows the CiA DS-301 version 4.02 and DSP-401 version 2.1. It is easy to access the analogue I/O status and set the configuration by using the standard CANopen protocol. The CAN-2024C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, the provided EDS file is standard for any other standard CANopen masters. Owing to the 4-channel analog output and the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements.

Application

Specifications

CPU Module
Watchdog Timer Hardware watchdog
LED Indicators
Status 3 LEDs to PWR, RUN and ERR
Analog Output
Channels 4
Type 0~ 5 V, +/- 5 V, 0~ 10 V, +/- 10 V, 0 ~ 20 mA, 4 ~ 20 mA
Resolution 14-bit
Accuracy +/- 0.1 % of FSR for voltage output ; +/- 0.2 % of FSR for current output
Zero Drift Voltage: +/-30μV/°C
Current:: +/-0.2μV/°C
Span Drift +/-20ppm/°C
Voltage Output Capability 10V@ 5mA
Current Load Resistance External +24 V : 1050 Ohms
Power-on Value Yes
Isolation 3000 VDC
CANopen
Baud Rate 10 k ~ 1 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Built-in 120Ω
Protocol CiA 301 v4.02, CiA 401 v2.1
Node ID 1 ~ 99
No. of PDOs 10 RxPDO , 10 TxPDO
PDO Mode Event Triggered, Remotely requested, Cyclic and acyclic SYNC
Error Control Node Guarding protocol or Heartbeat Producer
NMT Slave
EMCY Message Yes
Power
Consumption 2.5 W
Mechanical
Dimensions (mm) 33 x 99 x 78 ( W x L x H )
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

CAN-2024C     CR  CANopen Slave Module of 4-channel 14-bit AO (RoHS)
