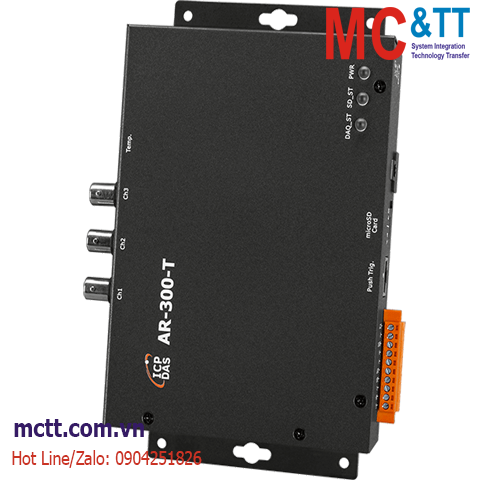

Bộ thu thập và xử lý dữ liệu (Data logger) 3 kênh đo gia tốc (dao động, rung chấn, Accelerometer) + 1 kênh nhiệt độ ICP DAS AR-300-T CR
Feature
- 3 simultaneous, 16-bit resolution ADC
- Support 3-ch IEPE input, 1-ch Thermistor input, and built-in 3 mA excitation current.
- Support sampling rate: 125kHz/100kHz/50kHz/20kHz/10kHz/5kHz
- Max. Recording time: 30 m (5kHz)
- Flexible trigger modes:
* Push button trigger
* Schedule trigger
* Analog threshold trigger
* Digital input trigger
* Software remote trigger
- Supports 4 to 32 GB micro SDHC type flash
Introduction
AR-300-T is a high-performance dynamic signal acquisition module equipped with 3 channel IEPE input providing simultaneous-sampling at up to 125 kHz per channel and 1 channel Thermistor input. The module has a built-in 16- bit resolution ADC and 3 mA excitation current to measure IEPE sensors, and a micro SDHC flash card for data logging. It also supports flexible trigger modes, sampling rates, and recording time span, making it ideal for signal measurement in vibration applications
Application
-
Big data analysis
-
system monitoring
-
trend analysis
-
predictive maintenance
Specifications
| LED Indicators |
| Status |
1 x PWR
1 x DAQ
1 x SD |
| Temperature Measurement |
| Sensor Type |
Thermistor |
| Channels |
1 |
| Range |
0 °C ~ +80 °C |
| Accuracy |
±2 °C |
| Installation |
Wall-mount |
| Analog Input |
| Channels |
3 (simultaneous sampling) |
| Type |
IEPE |
| Range |
Voltage: ±10 V
Current: 3 mA |
| Resolution |
16 bit |
| Sampling Rate |
5, 10, 20, 50, 100, 125 (kHz) |
| Digital Input |
| Channels |
2, Dry Contact: Source x 1
Wet Contact: Sink or Source x 1 |
| ON Voltage Level |
Dry: Close to GND
Wet: +10 VDC to +50 VDC |
| OFF Voltage Level |
Dry: Open
Wet: +4 VDC max |
| Relay Output |
| Channels |
Form A x 1 |
| Type |
Power Relay |
| Contact Rating |
5A@250 VAC (47 ~ 63 Hz)
5A@30 VDC |
| Operate Time |
10 ms |
| Release Time |
5 ms |
| Electrical Endurance |
100,000 times min |
| Mechanical Endurance |
20,000,000 times min |
| Ethernet |
| Ports |
1 x RJ-45, 10/100Base-T(X) |
| Mechanical |
| Dimensions (mm) |
197 x 139 x 57 (W x L x H) |
| Installation |
Wall Mount |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| AR-300-T CR |
Accelerometer Data Logger Device, 3-ch IEPE Input, 1-ch Thermistor Input (RoHS) |
