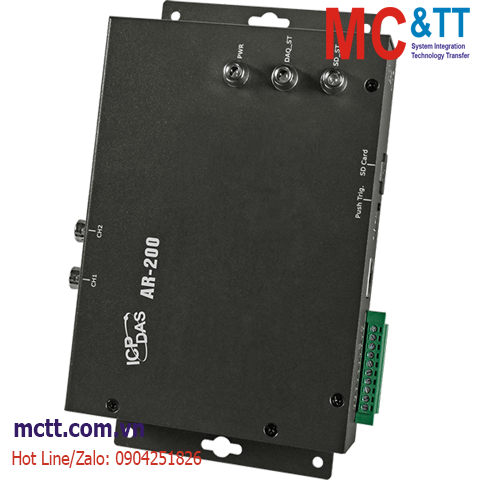

Bộ thu thập và xử lý dữ liệu (Data logger) 2 kênh đo gia tốc (dao động, rung chấn, Accelerometer) ICP DAS AR-200 CR
Feature
- 2 or 4 simultaneous, 16-bit resolution ADC.
- Support 2 or 4 IEPE input，and built-in 3 mA excitation current.
- AR-200 support sample rate: 200kHz、100kHz、50kHz.
- Max. Recording time：120 seconds.
- Flexible trigger modes: Push button trigger、Schedule trigger、analog threshold trigger、digital input trigger and utility remote trigger.
- Supports 4 to 32 GB micro SDHC type flash.
- 4 kV Contact ESD protection for any terminal.
- Wide range of power input (+10 to +30 VDC) and operating temperature (-25 to 75°C).
Introduction
The AR-200/AR-400 series is a range of high-performance dynamic signal acquisition modules that are designed specifically for vibration monitoring and analysis. The maximum simultaneous sampling rate for each channel on the AR-200 and AR-400 is up to 200k-Hz and 125k-Hz respectively. The AR-200/AR-400 modules include a built-in 3mA excitation current to power the Integrated Electronics Piezo-Electric (IEPE) accelerometers and a 16-bit A/D converter. The data acquired by the AR-200/AR-400 is saved on a Micro SD card that can be used for offline vibration analysis. ICP DAS also provides a utility that can be installed on the Host PC that can be easily configured for different triggering modes, as well as changing the sampling rate, and scheduling the sampling time for various applications using the development tools. Consequently, the AR-200/AR-400 modules are recommended as your best choice for vibration monitoring and measurement.
Application
- Industrial Automation
- Factory Automation
- Process Automation
- Etc…
Specifications
| LED Indicators |
| Status |
1 x PWR
1 x DAQ
1 x SD |
| Analog Input |
| Channels |
2 (simultaneous sampling) |
| Type |
IEPE |
| Range |
Voltage: ±10 V
Current: 3 mA |
| Resolution |
16 bit |
| Sampling Rate |
5, 10, 20, 50, 100, 200 (kHz) |
| Digital Input |
| Channels |
2, Dry Contact: Source x 1, Wet Contact: Sink or Source x 1 |
| ON Voltage Level |
Dry: Close to GND
Wet: +10 VDC to +50 VDC |
| OFF Voltage Level |
Dry: Open
Wet: +4 VDC max |
| Relay Output |
| Channels |
Form A x 1 |
| Type |
Power Relay |
| Contact Rating |
5A@250 VAC (47 ~ 63 Hz)
5A@30 VDC |
| Operate Time |
10 ms |
| Release Time |
5 ms |
| Electrical Endurance |
100,000 times min |
| Mechanical Endurance |
20,000,000 times min |
| Ethernet |
| Ports |
1 x RJ-45, 10/100Base-T(X) |
| Mechanical |
| Dimensions (mm) |
197 x 139 x 57 (W x L x H) |
| Installation |
Wall Mount |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| AR-200 CR |
Accelerometer Data Logger Device, 2-ch IEPE Input (RoHS) |
