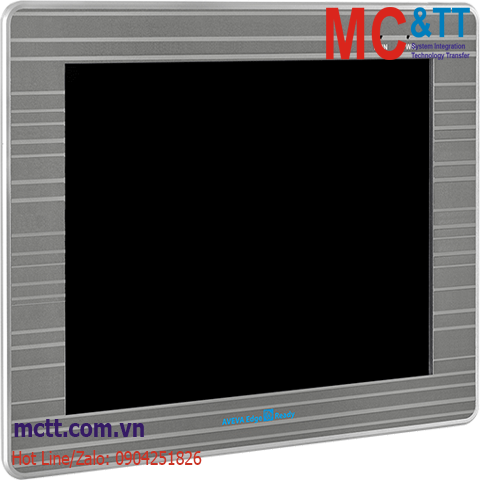

Màn hình lập trình nhúng AVEVA Edge 300 tag ViewPAC 12.1 inch CPU Cortex-A8 + WinCE 7.0 ICP DAS AEV-5201-CE7 CR
Features
• AVEVA Edge 300 tags runtime license ready
• Windows Embedded Compact 7 Operating System
• IP65 Compliant Front Panel
• 12.1" TFT LCD with Touch Panel
• RTC (Real-time clock)
• 64-bit Hardware Serial Number for Software Protection
• Various Communication Interfaces
‣ 1 x 10/100/1000BASE-T Ethernet Port
‣ 3 x Serial Ports (RS-232/485)
‣ 2 x USB 2.0 (host)
Introduction
The AEV-5201-CE7 are CE7 based ViewPAC that combine computing, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU, 12.1”TFT LCD and a variety of input/output ports (USB, Ethernet, RS-232/485). Remote I/O expansion is available to use Ethernet I/O modules and RS-485 I/O modules.
This ViewPAC also features with the powerful AVEVA Edge.
AVEVA Edge is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) systems. Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.
Application
Specifications
| Software |
| OS |
Windows CE 7.0 |
| Service |
FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support |
.NET Compact Framework 3.5 |
| Multilanguage Support |
English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit |
| CPU |
Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
512 MB DDR3 SDRAM, 256 MB Flash (SSD) |
| Storage |
A SD/microSD adapter and 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory |
128 KB MRAM, 16 KB EEPROM |
| Real Time Clock |
Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Size |
10.4” (4:3) |
| Backlight Life |
50,000 hours |
| Brightness |
400 cd/m2 |
| Resolution |
800 x 600 |
| Touch Panel |
5-wire, resistive type; light transmission: 80 % |
| LED Indicators |
| Status |
1 x System, 1 x Power |
| COM Ports |
| Ports |
1 x RS-485 (2500 VDC Isolated), 2 x RS-232/RS-485 (2500 VDC Isolated) |
| HMI |
| Rotary Switch |
1 x 10 Position (0 ~ 9) |
| Ethernet |
| Ports |
1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB |
| Connector |
2 x USB 2.0 |
| Power |
| Input Range |
+12 VDC ~ +48 VDC |
| Consumption |
13.0 W |
| Powered from PoE |
Yes |
| Mechanical |
| Dimensions (mm) |
291 x 229 x 54 (W x L x H) |
| Panel Cut-Out (mm) |
277 x 215, ±1 (W x H) |
| Installation |
Panel Mounting |
| Ingress Protection Rating |
Front panel: NEMA 4/IP65 |
| Environment |
| Operating Temperature |
-10 ~ +60 °C |
| Storage Temperature |
-20 ~ +70 °C |
| Humidity |
10% ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| AEV-5201-CE7 CR |
12.1" LCD AVEVA Edge (300 tags) Based ViewPAC (WinCE 7.0) (RoHS) |
