Màn hình lập trình nhúng AVEVA Edge 1500 tag ViewPAC 12.1 inch CPU Cortex-A8 + WinCE 7.0 ICP DAS AEV-5201-CE7-1500 CR

Chia sẻ:
Mã sản phẩm: AEV-5201-CE7-1500
Thương hiệu: ICP DAS
Tình trạng:

12.1" LCD AVEVA Edge (1500 tags) ready ViewPAC

Liên hệ
Mô tả

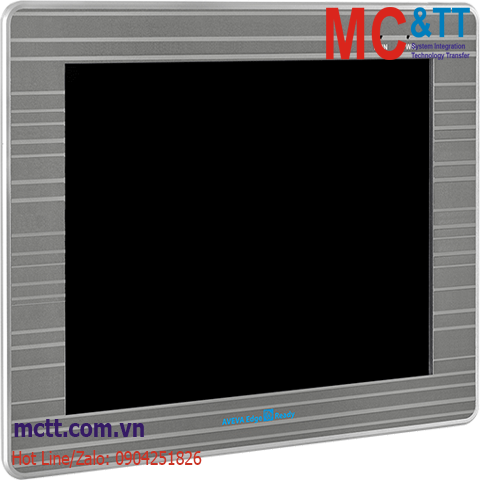

Màn hình lập trình nhúng AVEVA Edge 1500 tag ViewPAC 12.1 inch CPU Cortex-A8 + WinCE 7.0 ICP DAS AEV-5201-CE7-1500 CR

Features

• AVEVA Edge 1500 tags runtime license ready
• Windows Embedded Compact 7 Operating System
• IP65 Compliant Front Panel
• 12.1" TFT LCD with Touch Panel
• RTC (Real-time clock)
• 64-bit Hardware Serial Number for Software Protection
• Various Communication Interfaces
     ‣ 1 x 10/100/1000BASE-T Ethernet Port
     ‣ 3 x Serial Ports (RS-232/485)
     ‣ 2 x USB 2.0 (host)

Introduction

The AEV-5201-CE7-1500 are CE7 based ViewPAC that combine computing, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU, 12.1”TFT LCD and a variety of input/output ports (USB, Ethernet, RS-232/485). Remote I/O expansion is available to use Ethernet I/O modules and RS-485 I/O modules.

This ViewPAC also features with the powerful AVEVA Edge.
AVEVA Edge is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) systems. Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.

Application

Specifications

Software
OS Windows CE 7.0
Service FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5
Framework Support .NET Compact Framework 3.5
Multilanguage Support English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK Dll for VC, Dll for Visual Studio.Net 2008
Main Unit
CPU Cortex-A8, 1 GHz
64-bit Hardware Serial Number Yes
System Memory 512 MB DDR3 SDRAM, 256 MB Flash (SSD)
Storage A SD/microSD adapter and 4 GB microSD card (up to 32 GB)
Non-Volatile Memory 128 KB MRAM, 16 KB EEPROM
Real Time Clock Provide second, minute, hour, date, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Size 10.4” (4:3)
Backlight Life 50,000 hours
Brightness 400 cd/m2
Resolution 800 x 600
Touch Panel 5-wire, resistive type; light transmission: 80 %
LED Indicators
Status 1 x System, 1 x Power
COM Ports
Ports 1 x RS-485 (2500 VDC Isolated), 2 x RS-232/RS-485 (2500 VDC Isolated)
HMI
Rotary Switch 1 x 10 Position (0 ~ 9)
Audio
Jack Earphone-out
Ethernet
Ports 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB
Connector 2 x USB 2.0
Power
Input Range +12 VDC ~ +48 VDC
Consumption 13.0 W
Powered from PoE Yes
Mechanical
Dimensions (mm) 291 x 229 x 54 (W x L x H)
Panel Cut-Out (mm) 277 x 215, ±1 (W x H)
Installation Panel Mounting
Ingress Protection Rating Front panel: NEMA 4/IP65
Environment
Operating Temperature -10 ~ +60 °C
Storage Temperature -20 ~ +70 °C
Humidity 10% ~ 90% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

AEV-5201-CE7-1500     CR  12.1" LCD AVEVA Edge (1500 tags) Based ViewPAC (WinCE 7.0) (RoHS)
