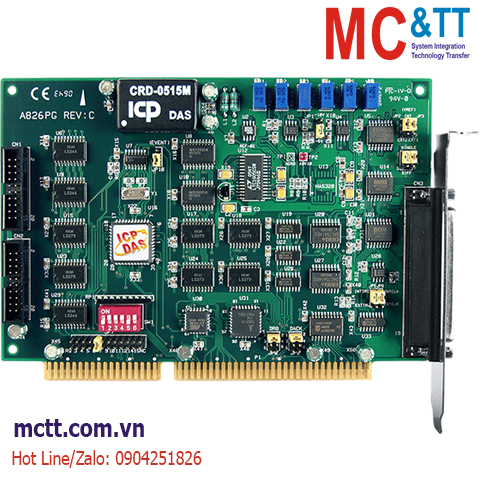

Card ISA 16 kênh AI 16 bits, 100 kS/s + 2 kênh AO + 16 kênh DI/DO + 1 kênh Timer/Counter/Frequency ICP DAS A-826PG/S CR

Chia sẻ:
Mã sản phẩm: A-826PG/S
Thương hiệu: ICP DAS
Tình trạng:

ISA Bus, 100 kS/s, 16-ch 16-bit AI Multifunction Board

Liên hệ
Mô tả

Card ISA 16 kênh AI 16 bits, 100 kS/s + 2 kênh AO + 16 kênh DI/DO + 1 kênh Timer/Counter/Frequency ICP DAS A-826PG/S CR

A-826PG đã dừng sản xuất, thay thế, nâng cấp thành PCI-826LU

Features

  • 16-bit A/D converter
  • 12-bit D/A converter
  • 16 single-ended or 8 differential input channels
  • 100 k/s sampling rate
  • Two 12-bit AO channels
  • AO Range : 0 ~ 5 V , 0 ~ 10 V, 0 ~ EXT Ref
  • Software programmable gain : 0.5 , 1 , 2 , 4, 8
  • Interrupt handling
  • A/D Trigger modes : Software Trigger, Pacer Trigger, External Trigger , Event Trigger
  • A/D data transfer modes : polling , interrupt , DMA
  • 16 DI & 16 DO
  • 37 pin D-Sub connector

Introduction

The A-826PG/S is 16-bit multifunction analog and digital I/O boards for the PC/AT compatible computer. The A-826PG/S offer 16 single-ended or 8 differential AIs, plus two channels of AO with 12-bit resolution. In addition, The A-826PG/S has 16 DI, 16 DO , and one timer/counter channel. The A-826PG provides gain of 0.5, 1, 2 , 4, 8 while the A-826PG/S provides gains of 0.5 , 1 , 2 , 4, 8 . It has a maximum sampling rate of 100 k samples/Sec., DMA operation is jumper selectable for levels 1 or 3. Interrupts are jumper selectable between 3 and 15.

ICP DAS discontinue the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contacts us for OEM/ODM project if you are interested on customized version (or /NDA model).

Accessories

Applications

  • Signal analysis
  • Industrial automation
  • Laboratory automation
  • Sensor interface
  • FFT & frequency analysis
  • Transient analysis
  • Production test
  • Process control

Click to view the Introduction of https://mctt.vn/isa-icp-das

Specifications

Hardware
Connector Female DB37 x 1
20-pin box header x 2
Analog Input
Channels 16 single-ended/8 differential
Range ± 10V, ± 5V, ± 2.5V, ± 1.25V
Resolution 12-bit
Accuracy 0.1% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate 100 kS/s. Max.
Overvoltage Protection Continuous ±35 Vp-p
Zero Drift 15 ppm/°C of FSR
Trigger Mode Software, Pacer, External
Data Transfer Polling, Interrupt(DMA)
Analog Output
Channels 2
Range 0 ~ 10 V, 0 ~ 5 V, 0 ~ Ext Ref V
Resolution 12-bit
Accuracy ±6 LSB
Response Time 500 kHz (Typical)
Voltage Output Capability ±5 mA
Slew Rate 0.6 us to 0.01% for full scale step
Operation Mode Static Update
Digital Input
Channels 16
Type 5 V/TTL
ON Voltage Level 2.0 V Min.
OFF Voltage Level 0.8 V Max.
Response Speed 1.0 MHz (Typical)
Trigger Mode Static Update
Digital Output
Channels 16
Type 5 V/TTL
Operation Mode Static Update
Load Voltage Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min.
Load Current Sink: 40 mA
Source: 20 mA
Response Speed 1.0 MHz (Typical)
Timer/Counter/Frequency
Channels 1
Type 5 V/TTL
Resolution 16-bit
PC Bus
Type ISA
Data Bus 8-bit
Power
Consumption 950 mA @ +5 V
Mechanical
Dimensions (mm) 122 X 175 X 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

A-826PG/S     CR  ISA Bus, 100 kS/s, 16-ch 16-bit AI Multifunction Board (RoHS)
Includes DB-8225 Terminal Board and one CA-3710 D-Sub cable
