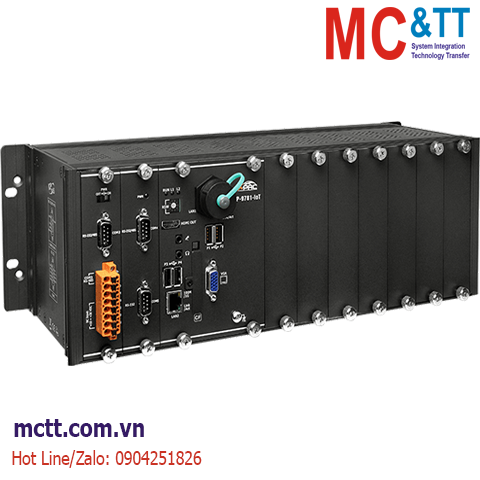

Bộ lập trình nhúng Windows PAC với CPU E3845 Win10 IoT + 7 khe cắm module I/O ICP DAS XP-9781-IoT CR

Chia sẻ:
Mã sản phẩm: XP-9781-IoT
Thương hiệu: ICP DAS
Tình trạng:

7-slot Metal Standard PAC with E3845 CPU and Windows 10 IoT

Liên hệ
Mô tả

Bộ lập trình nhúng Windows PAC với CPU E3845 Win10 IoT + 7 khe cắm module I/O ICP DAS XP-9781-IoT CR

Features

• Windows 10 IoT Enterprise (64-bit)
• Intel® Atom™ E3845 1.91 GHz
• 4 GB DDR3 SDRAM
• 64 GB SSD
• VGA and HDMI Port Output
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input

Introduction

The XP-9781-IoT are Windows 10 IoT Enterprise based PACs that combine computing, I/O, and operator interface into a single unit, and provide a perfect solution to integrate HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E3845 CPU, 7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interfaces. Local I/O slots are available for use with our I-9K and I-97K series I/O modules. And remote I/O expansions are available for use with Ethernet I/O modules or RS-485 I/O modules.

Applications

https://mctt.vn/xp-9000-iot-icp-das

Specifications

Software
OS Windows 10 IoT Enterprise (64-bit)
Service IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script)
Framework Support .Net Framework 3.5 ~ 4.8
Multilanguage Support English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese
SDK Dll for VC, Dll for Visual Studio.Net
Main Unit
CPU E3845, 1.91 GHz, 64-bit quad core
64-bit Hardware Serial Number Yes
System Memory 4 GB DDR3 SDRAM, 64 GB Flash
Storage 64 GB SSD, 32 GB CF card
Non-Volatile Memory 128 KB MRAM, 16 KB EEPROM
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Signal VGA, HDMI
Resolution VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3)
HDMI 2560 x 1600 @ 24bpp
LED Indicators
Status 1 x System, 2 x Power, 2 x Programmable
I/O Expansion
I/O Type I-9K, I-97K series
Slots 7
COM Ports
Ports 1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated)
HMI
Buzzer Yes
Rotary Switch 1 x 10 Position (0 ~ 9)
Audio
Jack Microphone-in and Earphone-out
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-TX
USB
Ports 4 x USB 2.0
Power
Input Range +10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs Yes
Consumption 20.4 W
Mechanical
Dimensions (mm) 422 x 164 x 133 (W x L x H)
Installation DIN-Rail, Wall mounting
Environment
Operating Temperature -25 ~ +60 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

XP-9781-IoT     CR  7-slot Metal Standard PAC with E3845 CPU and Windows 10 IoT (RoHS)
