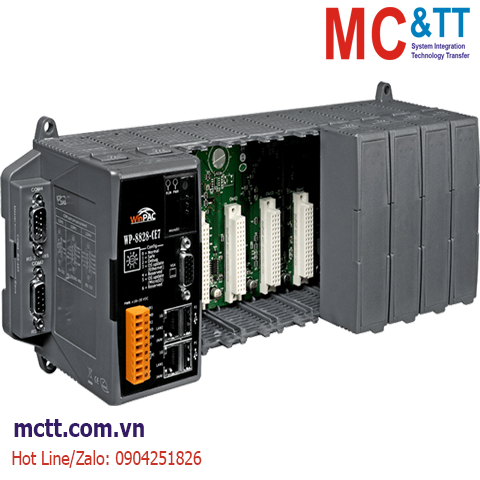

Bộ lập trình nhúng Win-GRAF PAC CPU Cortex-A8 + WinCE 7.0 +8 khe cắm module I/O ICP DAS WP-8828-CE7 CR

Chia sẻ:
Mã sản phẩm: WP-8828-CE7
Thương hiệu: ICP DAS
Tình trạng:

8-slot Win-GRAF Based PAC with Cortex-A8 CPU and WinCE 7.0

Liên hệ
Mô tả

Bộ lập trình nhúng Win-GRAF PAC CPU Cortex-A8 + WinCE 7.0 +8 khe cắm module I/O ICP DAS WP-8828-CE7 CR

Features

• Cortex-A8, 1GHz CPU
• 512 MB DDR3 and 256 MB Flash
• Windows CE 7.0
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• VGA Port Output
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI
• Redundant Power Inputs

Introduction

The Win-GRAF WinPAC-8000-CE7 Series (WP-8128-CE7/8428-CE7/8828-CE7) is the new generation Windows CE 7.0 based PAC (Programmable Automation Controller) of ICP DAS. Each WP-8000-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 1/4/8 expansion I/O slots that can be used to integrate high-performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules.

The benefits of running Windows CE 7.0 on a WinPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The WP-8xx8-CE7 series PACs are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical.

Application

Specifications

Software
OS Windows CE 7.0
Protocol • NET ID
• eLogger HMI
• Modbus TCP/IP Master
• Modbus TCP/IP Slave
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O
• Local I/O Modules
• Application Protection
• Data Binding
• On Line Change
• HART Master Protocol
• Schedule Control
• Retain Variables
• File Access and Data Log
Development Embedded Win-GRAF SoftLogic (IEC 61131-3)
Service FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server
Framework Support .Net Compact Framework 3.5
Multilanguage Support English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK Dll for VC, Dll for Visual Studio.Net 2008
Main Unit
CPU Cortex-A8, 1.0 GHz
64-bit Hardware Serial Number Yes
System Memory 512 MB DDR3 SDRAM
Storage 256 MB Flash, 4 GB microSD card (up to 32 GB)
Non-Volatile Memory 512 KB MRAM, 16 KB EEPROM
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Signal VGA
Resolution 800 x 600, 1024 x 768
LED Indicators
Status 1x Power, 1 x System/Programmable
I/O Expansion
I/O Type I-8K, I-87K series
Slots 8
COM Ports
Ports 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485
HMI
Buzzer Yes
Rotary Switch Yes, (0 ~ 9)
DIP Switch 8-bit for address
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB
Ports 2 x USB 2.0
Power
Input Range +10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs Yes
Consumption 9.6 W
Mechanical
Casing Plastic
Dimensions (mm) 355 x 132 x 111 (W x L x H)
Installation DIN-Rail, Wall mounting
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

WP-8828-CE7     CR  8-slot Win-GRAF Based PAC with Cortex-A8 CPU and WinCE 7.0 (RoHS)
