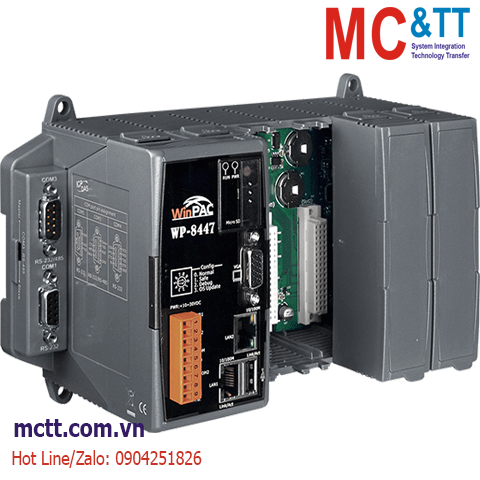

Bộ lập trình nhúng ISaGRAF PAC CPU PXA270+ WinCE 5.0 + 4 khe cắm module I/O ICP DAS WP-8447-EN CR
WP-8447-EN dừng sản xuất, thay thế và nâng cấp thành https://mctt.vn/xp-8337-ce6-cr
Features
• PXA270, 520 MHz CPU
• Windows CE 5.0
• Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3)
• VGA Port Output
• Modbus RTU/TCP (Master, Slave)
• Various Communication Interfaces
‣ 2 x 10/100BASE-T Ethernet Ports
‣ 2 x Serial Ports (RS-232/485)
‣ 1 x USB Port
• Redundant Power Input
Introduction
ISaGRAF WinPAC-8000 Series (WP-8147/8447/8847) is the new generation WinCE 5.0 based ISaGRAF PAC (Programmable Automation Controller) from ICP DAS. Each WP-8xx7 equip with a PXA270 CPU (520 MHz) running Windows CE 5.0 operating system, support a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and a range of I/O slots that can be used to integrate high-performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series).
The benefits of running Windows CE 5.0 on WinPAC devices are hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, and achievable deterministic control. WinPAC devices are also capable of running ISaGRAF and PC-based control software such as Visual Basic .NET, Visual C#, etc., that providing all of the best features of those PLCs and Windows PCs
Notice:
ISaGRAF can not run on 64-bit Windows 7/8 PCs. Win-GRAF would be proper choice.
WinPAC Series WP-8xx7 supports eLogger HMI:
Application
Specifications
| Software |
| OS |
Windows CE 5.0 |
| Service |
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| Framework Support |
.Net Compact Framework 3.5 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Main Unit |
| CPU |
PXA270 or compatible, 32-bit, 520 MHz |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
128 MB SDRAM |
| Storage |
96 MB Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory |
16 KB EEPROM, 512 KB Dual battery backup SRAM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Signal |
VGA |
| Resolution |
640 × 480, 800 × 600 |
| LED Indicators |
| Status |
1 x Power, 1 x Programmable |
| I/O Expansion |
| I/O Type |
I-8K, I-87K series |
| Slots |
4 |
| COM Ports |
| Ports |
2 x RS-232, 1 x RS-485 (2500 VDC Isolated), 1 x RS-232/RS-485 |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
Yes, (0 ~ 9) |
| DIP Switch |
Yes |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB |
| Ports |
1 x USB 1.1 (host) |
| Power |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs |
Yes |
| Consumption |
9.1 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
231 x 132 x 111 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| WP-8447-EN CR |
4-slot Standard PAC with PXA270 CPU and WinCE 5.0 (RoHS) (Multilanguage Version) |
