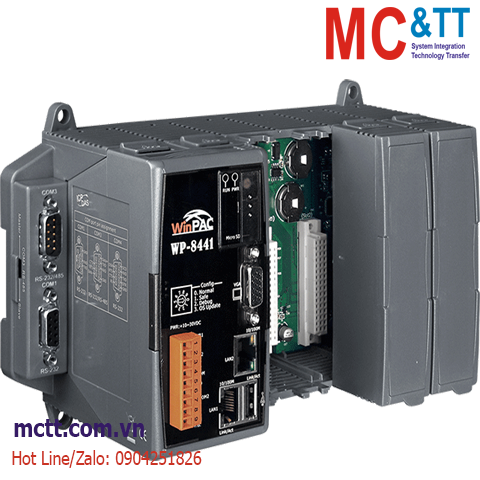

Bộ lập trình nhúng Windows CE 5.0 PAC với CPU PXA270 WinCE 5.0 + 4 khe cắm module I/O ICP DAS WP-8441-EN CR
WP-8441-EN đã dừng sản xuất, thay thế và nâng cấp thành WP-8421-CE7
Features
• PXA270, 520 MHz CPU
• Windows CE 5.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
‣ 128 MB SDRAM and 96 MB Flash
‣ 16 KB EEPROM for data retention
‣ 512 MB Battery-backup SRAM for data retention
‣ 1 x microSD socket with one microSD card
• Various Communication Interfaces
‣ 2 x 10/100BASE-T Ethernet Ports
‣ 2 x Serial Ports (RS-232/485)
‣ 1 x USB 2.0 (host)
• Built-In VGA Port
• Built-In Real-time clock
• 64-bit Hardware Serial Number for Software Protection
• 4 x I/O Expansion Slots
• 2 x LED Indicators
• Built-In dual Watchdog Timer
• Redundant Power Input
• Operating Temperature: -25 ~ +75 °C
Introduction
WP-8441-EN is the second generation PAC of ICP DAS. It equips PXA270 CPU (520MHz) running a Windows CE .NET 5.0 operating system, variant connectivities (VGA, USB, Ethernet, RS-232/485) and 4 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules). Its operating system,Windows CE 5.0, has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE 5.0 in the WinPAC-8000 gives it the ability to run PC-based Control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC …etc.
Application
https://mctt.vn/wp-8000-ce7-wp-8000-icp-das
Specifications
| Software |
| OS |
Windows CE 5.0 |
| Service |
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| Framework Support |
.Net Compact Framework 3.5 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Main Unit |
| CPU |
PXA270 or compatible, 32-bit, 520 MHz |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
128 MB SDRAM |
| Storage |
96 MB Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory |
16 KB EEPROM, 512 KB Dual battery backup SRAM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Signal |
VGA |
| Resolution |
640 × 480, 800 × 600 |
| LED Indicators |
| Status |
1 x Power, 1 x Programmable |
| I/O Expansion |
| I/O Type |
I-8K, I-87K series |
| Slots |
4 |
| COM Ports |
| Ports |
2 x RS-232, 1 x RS-485 (2500 VDC Isolated), 1 x RS-232/RS-485 |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
1 x 10 Position (0 ~ 9) |
| DIP Switch |
Yes |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB |
| Ports |
1 x USB 1.1 (host) |
| Power |
| Capacity |
1.1 A, 5 V supply to CPU and backplane, 4.9 A, 5 V supply to I/O expansion slots, total 30 W |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption |
9.1 W (0.38 A @ 24 VDC) |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
231 x 132 x 111 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Ingress Protection Rating |
IP30 (Aluminum) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| WP-8441-EN CR |
4-slot Standard PAC with PXA270 CPU and WinCE 5.0 (RoHS) (Multilanguage Version) |
