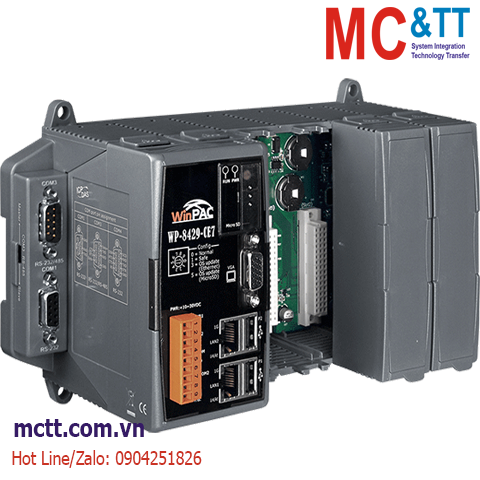

Bộ lập trình nhúng InduSoft PAC 300 tag CPU Cortex-A8 + WinCE 7.0 ICP DAS WP-8429-CE7 CR

Chia sẻ:
Mã sản phẩm: WP-8429-CE7
Thương hiệu: ICP DAS
Tình trạng:

InduSoft (300 tags) Based, 4-slot WinPAC

Liên hệ
Mô tả

Bộ lập trình nhúng InduSoft PAC 300 tag CPU Cortex-A8 + WinCE 7.0 ICP DAS WP-8429-CE7 CR

Features

• Cortex-A8, 1GHz CPU
• 512 MB DDR3 and 256 MB Flash
• Windows CE 7.0 Professional
• Hard Real-Time Capability
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Slots
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input
• Operating Temperature: -25 ~ +75°C

Introduction

The WP-8x29-CE7 is the new generation Windows CE 7.0 based PAC with InduSoft Runtime pre-installed of ICP DAS. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop HMI (Human Machine Interface) and SCADA (Supervisory Control and Data Acquisition system. Each WP-8x29-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 1/4/8 expansion I/O slots that can be used to integrate high performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules.

Application

Specifications

Software
OS Windows CE 7.0
Service FTP server, Web server (supports VB script, JAVA script), Embedded SQL serve
Multilanguage Support English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines
SDK Dll for VC, Dll for Visual Studio.Net 2008
Main Unit
CPU Cortex-A8 (1.0 GHz)
64-bit Hardware Serial Number Yes, for Software Copy Protection
System Memory DDR3 SDRAM: 512 MB
Storage Flash: 256 MB; microSD slot with one microSD card (support up to 32 GB)
Non-Volatile Memory MRAM: 128 KB; EEPROM: 16 KB
Real Time Clock Provide second, minute, hour, date, day of week, month, year
Watchdog Timer Yes
Display
Signal VGA: 800 x 600, 1024 x 768
LED Indicators
Status 1 x Programmable
I/O Expansion
Slots 4
COM Ports
Ports 2 x RS-232, Non-isolated; 1 x RS-232/485, Non-isolated; 1 x RS-485 (3000VDC Isolated)
HMI
Rotary Switch Yes (0 ~ 9)
DIP Switch Yes (8 bits)
Ethernet
Ports 2 x RJ-45, 10/100/1000Base-TX
USB
Connector 2 x USB
Power
Input Range +10 VDC ~ +30 VDC
Redundant Power Inputs Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption 9.1 W (0.38 A @ 24 VDC)
Mechanical
Dimensions (mm) 231 x 132 x 111 (W x L x H)
Installation DIN-Rail & wall mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

WP-8429-CE7     CR  InduSoft (300 tags) Based, 4-slot WinPAC (WinCE 7.0) (RoHS)
