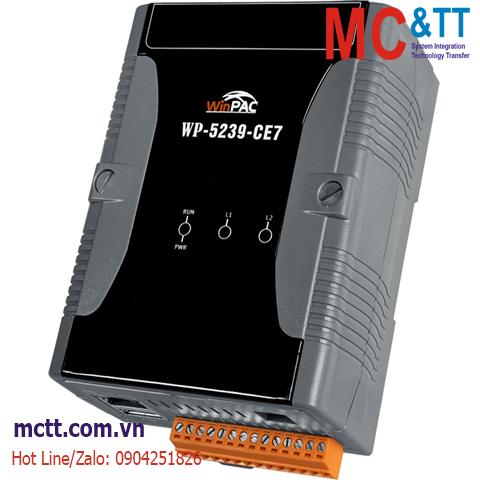

Bộ lập trình nhúng InduSoft PAC 300 tag CPU Cortex-A8 + WinCE 7.0 ICP DAS WP-5239-CE7 CR
Features
• Cortex-A8, 1GHz CPU
• 512 MB SDRAM and 256 MB Flash
• Windows CE 7.0 Professional
• Hard Real-Time Capability
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Bus
• 10/100/1000M Ethernet Port
• 4 Serial Ports (RS-232/485)
• Operating Temperature: -25 ~ +75°C
Introduction
WP-5239-CE7 is equipped a Cortex-A8(1GHz CPU) and running a windows CE.NET 7.0 operating system with InduSoft Runtime pre-installed. The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in Flash and microSD, the WP-5239-CE7 series can save application program, image file and data.
Application
Specifications
| Software |
| OS |
Windows CE 7.0 |
| Service |
FTP server, Web server |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for Visual Studio.Net 2008 |
| Main Unit |
| CPU |
Cortex-A8, 1GHz |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
DDR3 SDRAM: 512 MB |
| Storage |
MicroSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card); Flash 256 MB; |
| Non-Volatile Memory |
FRAM: 64 KB |
| Real Time Clock |
Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer |
Yes |
| Display |
| Signal |
VGA: 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators |
| Status |
1 x Power and Communication
2 x User defined |
| I/O Expansion |
| I/O Type |
Yes, one optional XV-board |
| COM Ports |
| Ports |
2 x RS-232, Non-isolated; 1 x RS-485, Non-isolated; 1 x RS-485 (2500VDC Isolated) |
| HMI |
| Rotary Switch |
Yes (0 ~ 9) |
| Ethernet |
| Ports |
1 x RJ-45, 10/100/1000Base-TX |
| Power |
| Input Range |
+12 ~ +48 VDC |
| Consumption |
4.8 W |
| Mechanical |
| Dimensions (mm) |
91 x 132 x 52 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +80 °C |
| Humidity |
10% ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| WP-5239-CE7 CR |
InduSoft (300 tags) based WinPAC-5000 with WinCE 7.0 (RoHS) |
