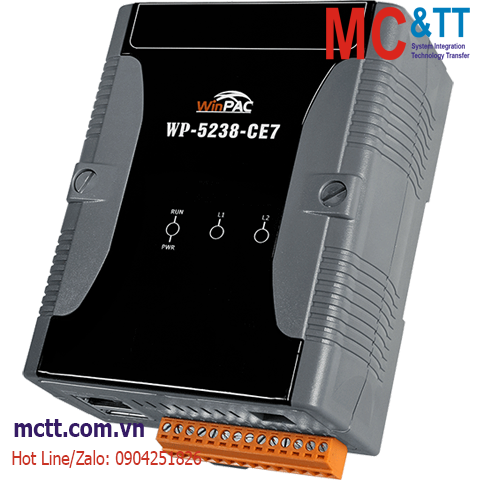

Bộ lập trình nhúng Win-GRAF PAC CPU Cortex-A8 + WinCE 7.0 ICP DAS WP-5238-CE7 CR
Features
• Cortex A8,1 GHz CPU
• 512 MB SDRAM and 256 MB Flash
• Windows CE 7.0
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Bus
• 10/100/1000M Ethernet Port
• 4 Serial Ports (RS-232/485)
Introduction
The Win-GRAF WP-5000 Series (WP-5238-CE7) is the new generation WinCE 7.0 based Win-GRAF PAC (Programmable Automation Controller) from ICP DAS. This series PAC is equipped with a Cortex A8 CPU (1 GHz) and running a windows CE.NET 7.0 operating system. The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in micro SD, the Win-GRAF WP-5000 series can save application programs, image files, and data.
The benefits of running Windows CE on a WinPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The PACs are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical.
Application
Specifications
| Software |
| OS |
Windows CE 7.0 |
| Protocol |
• NET ID
• eLogger HMI
• Modbus TCP/IP Master
• Modbus TCP/IP Slave
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O
• Local I/O Modules
• Application Protection
• Data Binding
• On Line Change
• Schedule Control
• Retain Variables
• File Access and Data Log |
| Development |
Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service |
FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Framework Support |
.Net Compact Framework 3.5 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit |
| CPU |
Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
512 MB DDR3 SDRAM |
| Storage |
256 MB Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory |
64 KB FRAM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Signal |
VGA |
| Resolution |
640 × 480
800 × 480
800 × 600
1024 × 768 |
| LED Indicators |
| Status |
1 x System/Power, 2 x Programmable |
| I/O Expansion |
| I/O Type |
XV-board |
| COM Ports |
| Ports |
2 x RS-232, 1 x RS-485, 1 x RS-485 (2500 VDC Isolated) |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
Yes, (0 ~ 9) |
| Ethernet |
| Ports |
1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| Power |
| Input Range |
+12 ~ 48 VDC |
| Consumption |
4.8 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
91 x 132 x 52 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-40 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| WP-5238-CE7 CR |
Win-GRAF Based PAC with Cortex-A8 CPU, WinCE 7.0, and 1 I/O Bus (RoHS) |
