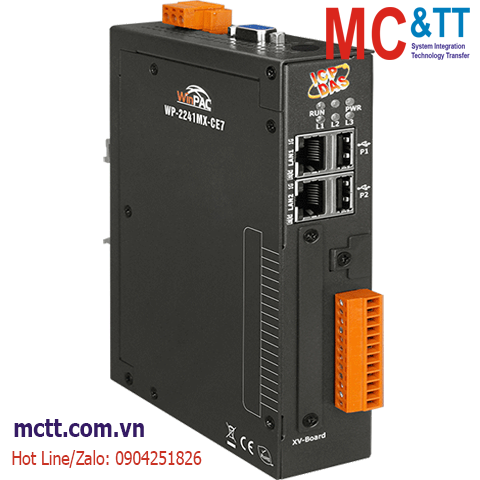

Bộ lập trình nhúng Windows CE 7.0 PAC với CPU Cortex-A8 WinCE 7.0 + 1 khe cắm module I/O ICP DAS WP-2241MX-CE7 CR

Chia sẻ:
Mã sản phẩm: WP-2241MX-CE7
Thương hiệu: ICP DAS
Tình trạng:

Standard PAC with Cortex-A8 CPU, WinCE 7.0, 1 I/O Bus and Optional Communication Module

Liên hệ
Mô tả

Bộ lập trình nhúng Windows CE 7.0 PAC với CPU Cortex-A8 WinCE 7.0 + 1 khe cắm module I/O ICP DAS WP-2241MX-CE7 CR

Features

• Cortex-A8, 1 GHz CPU
• Windows CE 7.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
      ‣ 512 MB SDRAM and 256 MB Flash
      ‣ 64KB FRAM memory for data retention
      ‣ 1 x microSD socket with one microSD card
• Various Communication Interfaces
      ‣ 2 x 10/100/1000BASE-T Ethernet Ports
      ‣ 4 x Serial Ports (RS-232/485)
      ‣ 2 x USB 2.0 (host)
• Built-In VGA Port
• Built-In Real-time clock
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Bus Interface
• 6 x LED Indicators
• Built-In dual Watchdog Timer
• Metal casing
• Operating Temperature: -25 ~ +75 °C

Introduction

The WP-2241MX-CE7 is equipped a Cortex-A8 CPU (1GHz) and running a windows CE 7.0 operating system. The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in Flash and Micro_SD, the WP-2241MX-CE7 can save application program, image file and data. The WP-2241MX-CE7 comes with a metal one.

Application

https://mctt.vn/wp-2000-ce7-icp-das

Specifications

Software
OS Windows CE 7.0 Professional
Service FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server
Framework Support .Net Compact Framework 3.5
Multilanguage Support English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK Dll for VC, Dll for Visual Studio.Net 2008
Main Unit
CPU Cortex-A8, 1.0 GHz
64-bit Hardware Serial Number Yes
System Memory 512 MB DDR3 SDRAM
Storage 256 MB Flash, 4 GB microSD card (up to 32 GB)
Non-Volatile Memory 64 KB FRAM
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Signal VGA
Resolution 640 × 480, 800 × 480, 800 × 600, 1024 × 768
LED Indicators
Status 1 x System, 1 x Power, 3 x Programmable
I/O Expansion
I/O Type XV-board
COM Ports
Ports 2 x RS-232, 2 x RS-485 (2500 VDC Isolated)
HMI
Buzzer Yes
Rotary Switch 1 x 10 Position (0 ~ 9)
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB
Ports 2 x USB 2.0
Power
Input Range +12 ~ 48 VDC
Consumption 4.8 W
Mechanical
Casing Metal
Dimensions (mm) 35 x 167 x 119 (W x L x H)
Installation DIN-Rail mounting
Ingress Protection Rating IP30 (Aluminum)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 10 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

WP-2241MX-CE7     CR  Standard PAC with Cortex-A8 CPU, WinCE 7.0, 1 I/O Bus and Optional Communication Module, Metal Case (RoHS)
