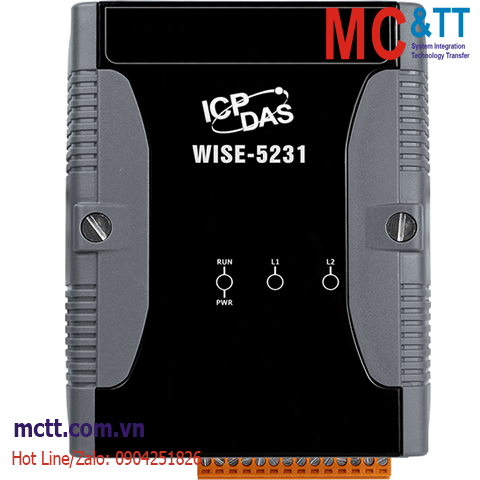

Bộ điều khiển nhúng IoT (IIoT Edge Controller) ICP DAS WISE-5231 CR

Bộ điều khiển nhúng IoT (IIoT Edge Controller) ICP DAS WISE-5231 CR

Feature

• Runs on browsers, no extra software tool is required.
• No more programming, Web pages provided for control logic editing.
• IF-THEN-ELSE logic rules execution ability.
• Support XV-board.
• Support DCON or Modbus RTU Slave modules (Up to 32, COM3 and COM4 can connect to Max. 16 modules individually.).
• Support Modbus TCP Slave modules (Up to 16).
• Timer and Schedule functions supported.
• Data logger and data files send back function supported.
• Active I/O sending function for real-time data transfer.
• CGI Command sending and receiving function supported for IP Camera and Network device.
• Support Modbus TCP/RTU, SNMP, FTP and MQTT protocols.
• Support LINE and Email real-time message sending.
• Support Connection with IoT Cloud Platform (Microsoft Azure and IBM Bluemix).
• Support IoTstar Cloud Management Software.

Introduction

WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending functions.

WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration. It allows connection to XV-board, DCON I/O modules, and Modbus TCP/RTU Slave modules all together. The wide range of selection options enables flexibility in I/O module integration to meet the requirements from various applications. WISE provides the MQTT client, it can directly connect to the major public IoT Cloud platform (such as: Microsoft Azure or IBM Bluemix) and MQTT Broker. WISE also provide well thought-out CGI command functions to integrate with IP camera for the Access Control applications. Based on the ability as I/O module connection ability, Intelligent logic control, Data logging, and various communication protocols supported (SNMP, MQTT and Modbus TCP/RTU), WISE can help the IT/MIS/MES/SCADA system to manage the field side I/O modules and sensors efficiently in the application such as Unmanned Facility Room Monitoring, Intelligent Factory and Environment Monitoring. WISE is not just a Concentrator of I/O modules and Sensors; it is also a Gateway to transfer the sensor data to IoT Cloud platform. All of these make WISE the best choice in the IoT Age.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.
