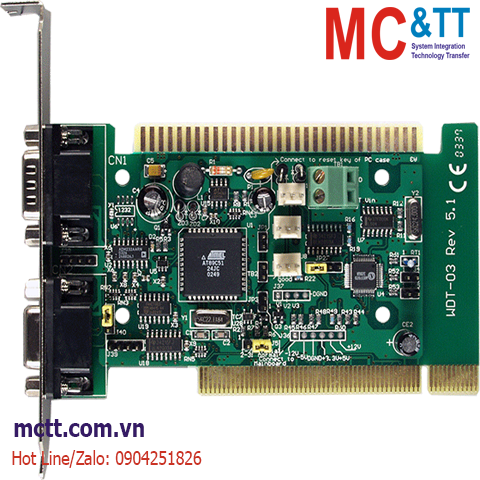

Card ISA/PCI Intelligent Watchdog Timer ICP DAS WDT-03 CR

Features

  • Support the +3.3/+5 V PCI bus
  • 512 KB MRAM Onboard
  • Non-volatile Random-access Memory Technology
  • Retains Data when Power is Turned Off
  • Unlimited Write Endurance
  • 16 channels DI
  • 16 channels DO

Introduction

It's a fact that the PC hardware and software may fail. To prevent the failure,many different solutions are proposed. However, none of these solutions offer a 100% assurance. Since it's   hard to prevent the failure, to detect the failure becomes more and more important. The WDT-03 is used to detect the failure of the software and hardware. It can be used to reduce the   risk of PC failure. The WDT-03 is useful even for those systems with built-in watchdog circuit.

The WDT-03 is equipped with two RS-232 ports, one is master port and another one is slave port. The master RS-232 port is designed to communicate with the local host-PC. The local host-PC   can enable/disable/refresh/read-back the watchdog timer through the master RS-232 port. The slave RS-232 is used to send information to the remote Host-PC for monitoring. SO the remote   HOST will get information immediately if the local host-PC has any software or hardware problem, even the power is failure.

Applications

  • Factory Automation
  • Product Test
  • Laboratory Automation

Specifications

Software
Utility Support Utility for DOS, 95/98/Me/2000/NT
Memory
Type EEPROM
Size 63 bytes for user read/write, read/write cycles : 100,000 times
Watchdog
Watchdog Timer Software enable/disable watchdog timer; From 0.03 second to 1966.05 seconds
Bus Voltage Monitoring 3.3V , 5V , 12V , -5V , -12V
Temperature Monitoring 3 channels
Fan Speed Monitoring 3 channels
COM Ports
Ports 1 x RS-232 (local CPU)
1 x RS232 (remote HOST(monitor the local CPU))
Baud Rate 2.4K, 4.8K, 9.6K, 19.2K, 38.4K, 57.6K, 115.2K
Data Format N,8,1
Protocol DCON Protocol
PC Bus
Type ISA/PCI bus for PC and any System with RS-232 interface
Power
Consumption 2 W
Mechanical
Dimensions (mm) 140 mm x 70 mm
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +75°C

Download

Datasheet

Documents

Ordering Information

WDT-03     CR  Intelligent Watchdog Timer Board (RoHS)
Includes one CA-0205 (2-pin Black and Red Cable, 0.5 m) and one CA-0910F (9-pin Female-Female D-sub Cable, 1.0 m)
