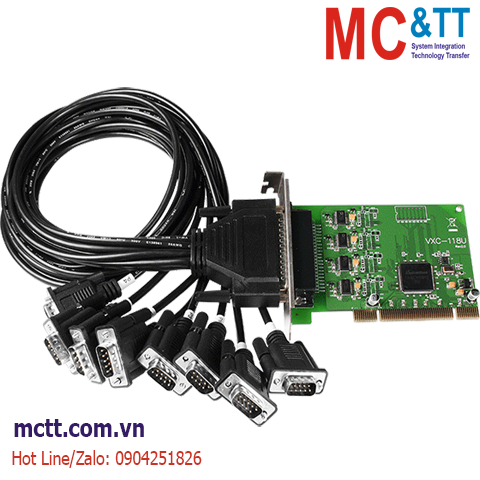

Card PCI 8 cổng COM RS-232 ICP DAS VXC-118U/D2 CR

Chia sẻ:
Mã sản phẩm: VXC-118U/D2
Thương hiệu: ICP DAS
Tình trạng:

Universal PCI, Serial Communication Board with 8 RS-232 ports

Liên hệ
Mô tả

Card PCI 8 cổng COM RS-232 ICP DAS VXC-118U/D2 CR

Features

  • Supports 3.3 V/5 V PCI bus
  • Provides 8 RS-232 ports
  • Automatically select an available COM port number
  • Supports COM port number selection under software control
  • 256-byte Hardware FIFO for Each Port
  • Short Card Design
  • RoHS compliant & No Halogen

Introduction

The VXC-118U card provides 8 RS-232 serial ports. It is equipped with a 256-byte hardware FIFO for each port, supports for speed up to 115200 bps and supports full-duplex communication. The VXC-118U card support drivers choose an available COM port number automatically.

The serial communication card are designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port.

Applications

  • Industrial Machinery
  • Building Automation
  • Restaurant Appliances
  • Laboratory Equipment & Research
  • Industrial Communication

Click to view the Introduction of https://mctt.vn/multi-port-serial-board

Specifications

Hardware
Connector Female DB-62
COM Ports
Ports 8 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND)
Baud Rate 50 - 115200 bps
Parity None, Even, Odd, Mark, Space
Data Bit 5, 6, 7, 8
Stop Bit 1, 1.5, 2
FIFO Size Internal 256 bytes
Power
Consumption 120 mA @ 5 V
Mechanical
Dimensions (mm) 121 x 132 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

VXC-118U/D2     CR  Universal PCI, Serial Communication Board with 8 RS-232 ports (RoHS)
Includes one CA-9-6210 cable
