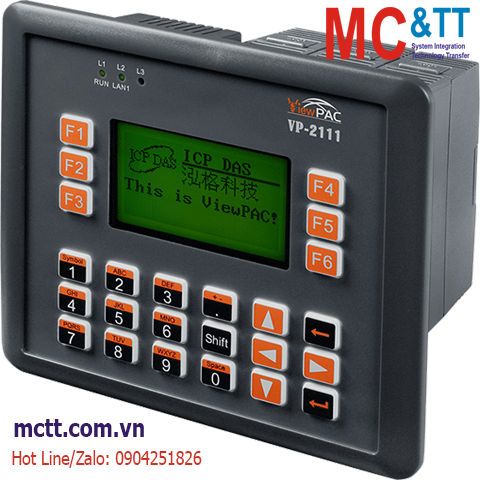

Màn hình hiện thị text 128x64 lập trình nhúng ViewPAC 10.4 inch CPU 80186 80+ MiniOS7 ICP DAS VP-2111 CR
Features
• 80186, 80 MHz CPU
• MiniOS7 Embedded Operating System (DOS-like)
• 64-bit Hardware Serial Number for Software Protection
• C language Based Software Development Toolkit
• 3 Slots for High Profile I/O Modules
• Modbus Library Provided
• Hardware Diagnostic Functions
• Load Files via RS-232 or Ethernet
• IP65 Compliant Front Panel
• STN LCD with Chinese Font
• Rubber Keypad with 24 Keys
• One 10/100M Ethernet Port
• 64 MB NAND Flash for Data Storage
• Dual Battery Backup SRAM (512KB)
• Rich I/O Expansion Ability (RS-232/422/485, Ethernet, Frnet, CAN)
• Operating Temperature: -15 ~ +55 °C
Introduction
ViewPAC combines iPAC, graphic display and keypad in one unit. It equips an 80186 CPU (16-bit and 80 MHz) running a MiniOS7 operating system, several communication interface (Ethernet, RS-232/485), 3 slots to expand I/O modules, STN LCD and a rubber keypad. Its operating system, MiniOS7, can boot up in a very short time (0.4~0.8 seconds). It has a built-in hardware diagnostic function, and supports the full range of functions required to access all high profile I-8K and I-87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion control modules, etc. Compared with traditional HMI + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of HMIs and PLCs.
Application
Specifications
| Software |
| OS |
MiniOS7 |
| Development |
C Language |
| CPU Module |
| CPU |
80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number |
Yes |
| EEPROM |
16 KB |
| Flash |
512 KB |
| NAND Flash |
64 MB |
| NVRAM |
31 Bytes |
| SRAM |
768 KB SDRAM, 512 KB Dual battery backup SRAM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Yes |
| Display |
| Type |
STN, 128x64 Dot Matrix LCD |
| Text Font |
English + Simplified Chinese |
| LED Indicators |
| Status |
1 x System, 1 x Power, 1 x Ethernet/3 x Programmable |
| I/O Expansion |
| I/O Type |
I-8K, I-87K series |
| Slots |
3 |
| COM Ports |
| Ports |
1 x RS-232, 1 x RS-485 (2500 VDC Isolated), 1 x RS-232/RS-485 |
| HMI |
| Buzzer |
Yes |
| Rubber Keypad |
24 |
| Ethernet |
| Ports |
1 x RJ-45, 10/100 Base-TX |
| Power |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated ) |
| Consumption |
6.0 W |
| Mechanical |
| Dimensions (mm) |
182 x 158 x 125 (W x L x H) |
| Installation |
Wall mounting |
| Ingress Protection Rating |
Front panel: IP65 |
| Weight |
1.6 kg |
| Environment |
| Operating Temperature |
-15 ~ +55 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
5 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| VP-2111 CR |
Standard ViewPAC with MiniOS7 and 3 I/O Slots (English + Simplified Chinese Version) (RoHS) |
