Card PCI Express 4 cổng RS-422/485 ICP DAS VEX-144 CR

Chia sẻ:
Mã sản phẩm: VEX-144
Thương hiệu: ICP DAS
Tình trạng:

PCI Express, Serial Communication Board with 4 RS-422/485 ports

Liên hệ
Mô tả

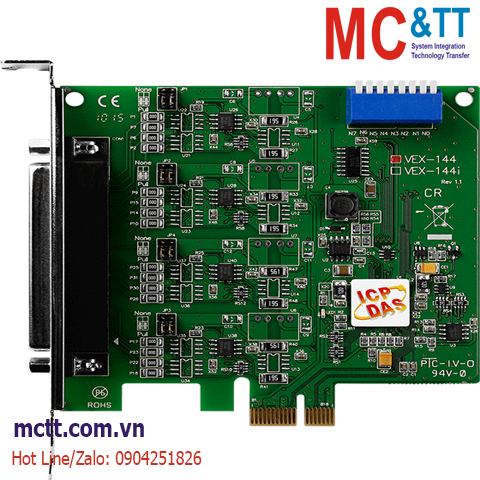

Card PCI Express 4 cổng RS-422/485 ICP DAS VEX-144 CR

VEX-144  đã dừng sản xuất, thay thế và nâng cấp thành PCIe-S144

Features

  • Supports PCI Express x1
  • Provides 4 RS-422/485 ports
  • Built-in COM-Selector
  • 128 KB Software Buffer (max.) for Each COM Port Under Windows
  • 128-byte Hardware FIFO for Each Port
  • ±4 kV ESD Protection for i versions
  • 2500 VDC Isolation for i versions
  • Short Card Design

Introduction

The VEX-144 series card provides 4 RS-422/RS-485 serial ports. Each port can be configured as either RS-485 for half-duplex or RS-422 for full-duplex communication. It supports for speed up to 115200 bps and supports full-duplex communication.

Users may specify a COM port number manually by setting DIP switch, or let the driver choose an available number automatically. The driver provides a maximum of 128 KB software FIFO for each COM port under Windows. It's practical for large file transmission.

The data lines of each serial ports on i version VEX cards come with photocouplers design. The on-board photo couplers use a short optical transmission path to transfer a signal between elements of a circuit, and keep the data lines electrically isolated. It can help cutting down on ground loops, common mode voltages and block voltage spikes, provide electrical isolation, and offer significant protection from serious over-voltage conditions in one circuit affecting the other.

In harsh industrial environments, the on-board ESD protection component (for i version) diverts the potentially damaging charge away from sensitive circuit to protects the computer and equipment from the sudden and momentary electric current.

Applications

  • Industrial Machinery
  • Building Automation
  • Restaurant Appliances
  • Laboratory Equipment & Research
  • Industrial Communication

Click to view the Introduction of https://mctt.vn/multi-port-serial-board

Specifications

Hardware
COM-Selector Yes (8-bit DIP switch)
Connector Female DB-37
COM Ports
Ports 4 x RS-422/485 (RS-422: TxD+, TxD-, RxD+, RxD-, RTS+, RTS-, CTS+, CTS-, GND / RS-485: Data+, Data-, GND)
Baud Rate 50 ~ 115200 bps
Parity None, Even, Odd, Mark, Space
Data Bit 5, 6, 7, 8
Stop Bit 1, 1.5, 2
FIFO Size Internal 128 bytes
Power
Consumption 120 mA @ 5 V
Mechanical
Dimensions (mm) 101 x 114 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

VEX-144     CR  PCI Express, Serial Communication Board with 4 RS-422/485 ports (RoHS)
Includes One CA-4002 Connector
