Module Ethernet OPC UA + MQTT 10 kênh Thermocouple AI + 3 kênh DO ICP DAS U-7518ZM/S CR
Features
• Support OPC UA Server and MQTT Client Protocol
• Support RESTful API via HTTP and HTTPS
• Support to Execute OPC UA, MQTT and RESTful API Simultaneously
• Support Scaling For Analog Signal Converting
• Support Logic Function Rule Setting: IF, THEN, ELSE
• Support Schedule: to Execute the Set Rules at a Specific Time.
• Support Event Log: Record the I/O Change for Device Tracking
• Support IoTstar Cloud Management Software.
• Built-in Web Server to Provide the Web User Interface
• I/O Channels: 10 x Thermocouple Inputs, 3 x DO
• Dual-port Ethernet Switch for Daisy-Chain Topology
• IEEE 802.3af-compliant Power over Ethernet (PoE)
Introduction
U-7518ZM/S is a UA I/O module that provides 10 thermocouple Input, and 3 digital output channels. It has a built-in dual-port Ethernet switch to implement daisy-chain topology. The cabling is much easy and can reduce the total cable and switch cost. It follows IEEE 802.3af (Class 2) compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. This feature provides greater flexibility and efficiency to simplify system design, save space, and reduce wirings and power sockets. It provides a Web UI to confi gure/control/monitor the modules, connections, and I/O status via a web browser. It is easy, fast, and no extra APP needed.
In industrial communication, UA I/O provides OPC UA Server, MQTT Client and RESTful API protocols (can execute all communications at the same time.). Users can choose the networking mode according to their cases. And to transmit the values of the built-in I/O channels to the Cloud system or field control system for displaying, analysis or strategy. Support Scaling. Let the analog signal be converted into a more readable value. Support logic function Rule Setting IF, THEN, ELSE, can set up logical condition/action for I/O and virtual point; Provide schedule function to execute the set rules at a specific time; Support RESTful API function, can read/write I/O and virtual point through HTTP or HTTPS.
Applications
Click to view the Introduction of https://mctt.vn/opc-ua-icp-das
Specifications
| Software |
| Protocol |
• OPC UA Server
• MQTT Client
• RESTful API |
| Function |
• Web Interface for Configuration
• Scaling
• Security
• Rule Setting
• Schedule
• Event Log
• IoTstar Setting |
| CPU Module |
| CPU |
32-bit CPU (400 MHz) |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
I/O: 2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each terminal
±8 kV Air for random point |
| LED Indicators |
| Status |
Run, Ethernet, I/O |
| Analog Input |
| Channels |
10 (Differential) |
| Type |
Voltage, Current, Thermocouple |
| Temperature Output Consistency |
Yes |
| Stable Temperature Output in the Field |
Yes |
| Range |
±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V,
±2.5 V, ±20 mA, 0 to 20 mA, 4 to 20 mA
(Requires Optional External 125 Ω Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, and LDIN43710) |
| Resolution |
16-bit |
| Accuracy |
±0.1% of FSR or better |
| Sampling Rate |
10 Samples/Second (Total) |
| Input Impedance |
> 300 kΩ |
| Common Mode Rejection |
150 dB (min.) |
| Normal Mode Rejection |
100 dB |
| Overvoltage Protection |
240 Vrms |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
Yes |
| Zero Drift |
±0.5 μV/°C |
| Span Drift |
±25 ppm/°C |
| Isolation |
±400 VDC, Virtual Channel to Channel Isolation |
| Digital Output |
| Channels |
3 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+5 ~ +50 VDC |
| Load Current |
700 mA/channel |
| Overvoltage Protection |
+60 VDC |
| Overload Protection |
1.4 A |
| Short-circuit Protection |
Yes |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| Ethernet |
| Ports |
RJ-45 x 2, 10/100 Base-TX, Swtich Ports |
| PoE |
Yes |
| LAN bypass |
Yes |
| Security |
ID, Password and IP Filter |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
3.3 W |
| Powered from PoE |
IEEE 802.3af, Class2 |
| Powered from Terminal Block |
+12 ~ +48 VDC |
| Mechanical |
| Dimensions (mm) |
97 x 114 x 47 (W x L x H) |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information

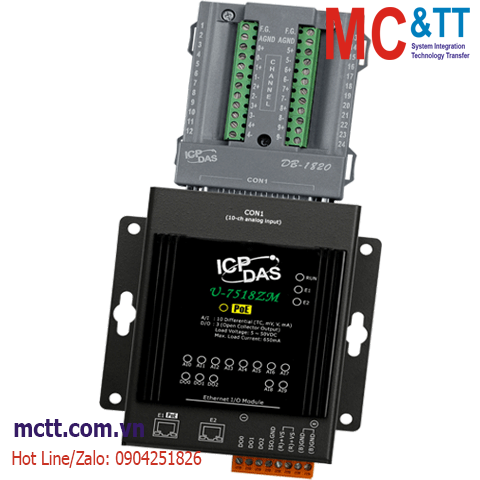

| U-7518ZM/S CR |
OPC UA I/O Module with 10-channels Thermocouple Inputs, 3-channels DO and 2-port Ethernet Switch. (RoHS)
Includes DB-1820 Daughter Board |
