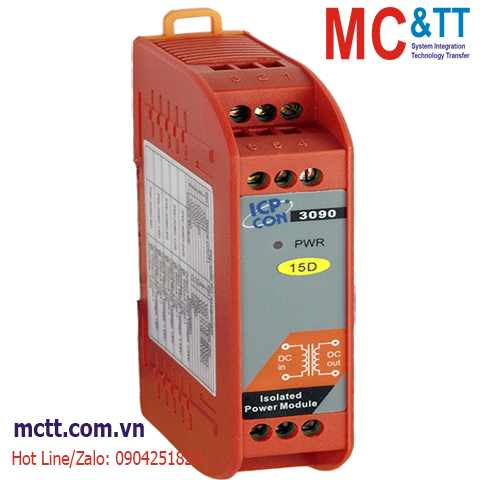

Bộ đổi nguồn 18 - 36 VDC sang 15 VDC 300 mA ICP DAS PW-3090-15D-R CR
Feature
• 1000 VDC isolation
• Flexible DIN-rail mounting
Introduction
The PW-3090 series is an efficient (83%) DC-to-DC power module with 1000 VDC isolated protection. It has non-regular DC input (18 ~ 36 V) and stable DC output (5 V, 12 V, 24 V, 5 V, 15 V). Using it, your devices can work with stable power source and against harmful effects in the operating environment. Using it, your devices can work with stable power source and against harmful effects in the operating environment.
Application
Power isolation (DC-to-DC converter)
Specifications
| Input |
| Voltage Range |
18 ~ 36 VDC (non-regulated) |
| Polar |
Bipolar |
| Output |
| Ripple & Noise (Max.) |
100 mVp-p max. |
| Line Regulation |
0.2% max. |
| DC Voltage |
±15 VDC @ 300 mA (max.)
Accuracy: 2% |
| Isolation |
1000 VDC |
| Efficiency |
83% Typical |
| Short Circuit Protection |
Yes |
| Mechanical |
| Dimensions (mm) |
25 mm x 114 mm x 70 mm (W x L x H) |
| Environment |
| Temperature Coefficient |
0.03 %/°C |
| Operating Temperature |
-25 ~ 70 °C |
| Storage Temperature |
-30 ~ 85 °C |
| Humidity |
5 ~ 95%, non-condensing |
Download
Datasheet
Documents
Ordering Information
| PW-3090-15D-R CR |
Power Conditioner, output voltage ±15 VDC @ 300 mA (max.) (RoHS) |
