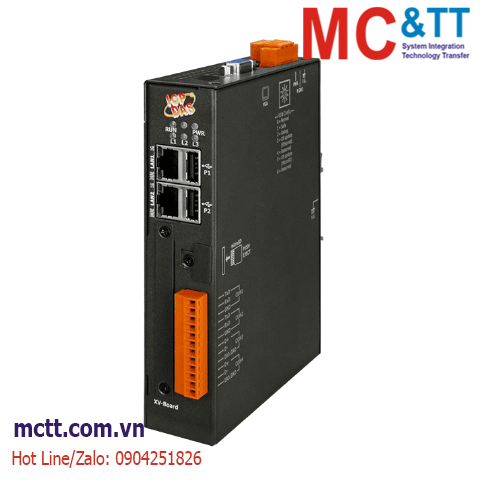

Bộ quản lý năng lượng điện tập trung IIoT ICP DAS PMC-2241M-iWSN CR

Mã sản phẩm: PMC-2241M-iWSN

Thương hiệu: ICP DAS

Tình trạng:

IIoT iWSN Power Meter Concentrator

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Bộ quản lý năng lượng điện tập trung IIoT ICP DAS PMC-2241M-iWSN CR

PMC-224xM-iWSN serves as an iWSN Wireless Power Meter Concentrator to meet the needs of energy management in the Industry 4.0 era. It allows flexible integration with ICP DAS iWSN wireless power meters via iWSN-200 data concentrator, and offers a range of functions including device power consumption measurement, energy usage analysis, power data logging, power demand management and alarm notification. PMC-224xM-iWSN offers a user-friendly and intuitive web site interface that enables users to easily implement an Energy monitoring system with just a few clicks; no programming is required. By working with iWSN power meters, incorporating IF-THEN-ELSE logic rule execution capabilities, and providing LINE/Telegram/Email alarm message notification functions, PMC-224xM-iWSN delivers advanced power demand management functions. In addition, it supports a wide range of network protocols including Modbus TCP/RTU, SNMP, FTP and MQTT, enabling seamlessly connection with back-end SCADA/IT/IoT systems. The PMC-224xM-iWSN can also connect with ICP DAS IoTstar IoT cloud management software, further enhancing its capability to integrate into diverse IT/IoT environments.

Feature

No extra software tool is required, using browsers to perform system operations.
Up to 3 iWSN-200 iWSN data concentrators be connected, supporting up to 93 ICP DAS iWSN wireless modules.
Supported iWSN wireless module types:
- Power meter : iWSN-9603
- Signal sensing module : iWSN-110X, iWSN-121A, iWSN-1310
- ※ Do NOT support iWSN-9603 3-minute history data cache function.
Display real-time or historical power data; Provide power data statistics report.
Power data logger and data files send back function supported.
Built-in IF-THEN-ELSE logic engine for power demand management.
Support Line, Telegram and Email message notification.
Support Modbus TCP/RTU, SNMP, MQTT, FTP and CGI protocols.
Support connection with IoT Cloud Platform (Microsoft Azure,IBM Bluemix) and IoTstar Cloud Management Software.

Application

Energy measurement, monitoring and management

Specifications

Software
Protocol	• Modbus TCP/RTU for SCADA software • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • DDNS
Function	• Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • Power meters & I/O modules monitoring and control • Data Logger operation • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Internal Register operation (70 set supported) • Instant message sending function (LINE, Telegram) • non-SSL & SSL Email sending function • SNTP Time Synchronization
Power Management	• Power Data Display • Historical Power Data Report • Power Demand Management • PUE Setting and Display
IoT Service Integration	• ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform

CPU Module
CPU	32-bit ARM CPU (1 GHz)
Storage Expansion	microSD socket with 4 GB microSD card (support up to 32 GB microSDHC card)

LED Indicators
Status	1 x Power 1 x Running

I/O Expansion
Remote Module Support	Signal sensing module : iWSN-110X, iWSN-121A, iWSN-1310
Power Meter	Power meter : iWSN-9603

Ethernet
Ports	RJ-45 x 2, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)

COM Ports
Ports	COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max.
