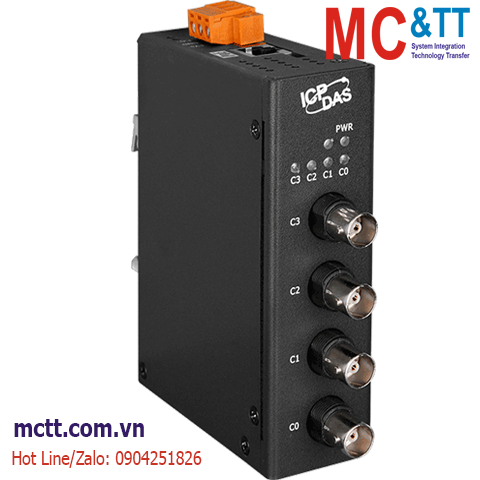

Module PoE Ethernet Modbus TCP thu thập dữ liệu tốc độ cao 4 kênh đầu vào rung chấn (Accelerometer) IEPE ICP DAS PET-AR400 CR
Features
- 4 differential IEPE input，Excitation Current 4 mA
- 24-bit ADC
- Supports Real Sample and Hold
- Sample Rate up to 128 kS/s(One Channel)
- Continuous and N Data Sample Data Transmission Mode
- A/D Trigger Mode
- Software Trigger
- Analog Threshold Trigger
- Software Support
- Supported Operating Systems
Windows 7/8/10 and Linux
- Software Compatibility
- Microsoft VC, C#, VB.NET SDK API and Demo
- NI LabVIEW Toolkit and Demo for Windows
- C/C++ library and Demo for Linux
- Built-In 10/100BASE-T Auto-negotiating, Auto MDI/MDI-X Ethernet Port
- Option for External Power Supply or POE Supply
Introduction
PET-AR400 is a high speed data acquisition device with a built-in Ethernet communication port for data transfer over a network, and includes 4 high-speed 24-bit differential IEPE input channels (128 kHz sample and hold @ one channels).
PET-7H24M also provides 4 kV ESD protection as well as 2500 VDC intra-module isolation. In addition, the 24-bit ADC includes built-in filtering to adjust the appropriate sampling rate and filter out modulator and signal noise. The PET-7H24M is not only suitable for a wide range of mobile/portable measurement applications, but also for precision signal measurement.
The software trigger mode can command the trigger to perform continuous or N data A/D acquisition when needed, on the other hand, when the trigger mode is set to Analog Threshold Trigger mode, the A/D will start collecting N data when the analog input value is above or below a certain voltage.
Applications
- Vibration measurement and analysis application
- Machine condition monitoring
- Predictive maintenance
Specifications
| Software |
| OS |
Windows 7/8/10 and Linux |
| Protocol |
TCP Streaming (Access data by SDK library)
Modbus TCP |
| Utility |
Configuration, graphically display and data logging |
| SDK |
Windows
。Microsoft VC, C#, VB.NET SDK API and Demo
。Python Demo
。NI LabVIEW Toolkit and Demo
Linux
。C/C++ library and Demo
。.NET library and Demo
。Python Demo |
| EMS Protection |
| EFT (IEC 61000-4-4) |
1 kV for power |
| ESD (IEC 61000-4-2) |
4 kV contact for each terminal,
8 kV air for random point |
| LED Indicators |
| Status |
1 x Power, 4 x Connection |
| Analog Input |
| Channels |
4 Differential (Simultaneously) |
| Range |
±10 V |
| Resolution |
24-bit |
| Accuracy |
±0.02 % FSR @ ±10 V |
| Sampling Rate |
128 kS/s (Each Channel) |
| Input Impedance |
Voltage: 2 MΩ |
| FIFO Size |
1 k bytes, 256 Samples |
| Trigger Mode |
Software, Analog Threshold Trigger |
| Ethernet |
| Ports |
1 x RJ-45, 10/100 Base-TX |
| PoE |
IEEE 802.3af, Class 2 |
| Security |
ID, Password and IP Filter |
| Protocol |
Modbus TCP Slave, Private TCP Raw Data |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
4.5 W |
| Powered from Terminal Block |
+12 ~ +48 VDC |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
33 x 120 x 108 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PET-AR400 CR |
PoE Ethernet High Speed Data Acquisition Module, 4-ch Accelerometer (IEPE) Inputs (RoHS) |
