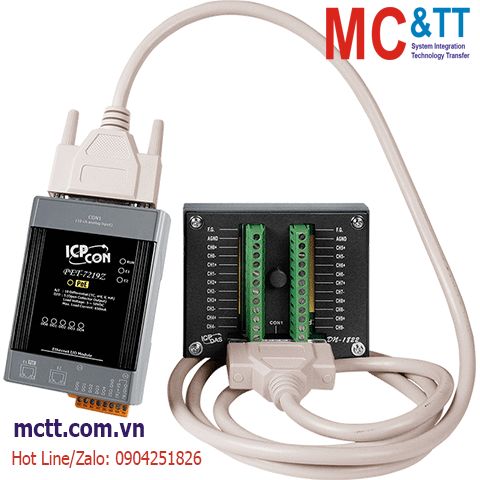

Module 2 cổng PoE Ethernet Modbus TCP 10 kênh AI (Thermocouple) + 3 kênh DO ICP DAS PET-7219Z/S2 CR
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- I/O Pair Connection
- Built-in I/O
- Thermocouple Input: 10 Channels
- DO: 3 Channels
Introduction
The “Z” version is another milestone in the development of the thermocouple series and is a testament to the excellence of ICP DAS products. The PET-7219Z is specifically designed for extremely accurate thermocouple measurement and features automatic coldjunction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. Current input and voltage input are both supported. Another feature is that its ten input channels can be individually configured for different kinds of analog input. Open thermocouple detection and ESD/EFT/Surge protection mechanisms are also included. The six/five digital output channels can be set as alarm outputs with short-circuit protection and overload protection
Applications
-
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.
Specifications
| Software |
| Built-in Web Server |
Yes |
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
I/O: 2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
Run, Ethernet, I/O, PoE |
| Analog Input |
| Channels |
10 (Differential) |
| Type |
Voltage
Current
Thermocouple |
| Temperature Output Consistency |
Yes |
| Stable Temperature Output in the Field |
Yes |
| Range |
±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V
±20 mA, 0 to 20 mA, 4 to 20 mA (Requires Optional External 125 Ω Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, and LDIN43710) |
| Resolution |
16-bit |
| Accuracy |
±0.1% of FSR or better |
| Sampling Rate |
10 Hz (total channels) |
| Input Impedance |
>300 kΩ |
| Common Mode Rejection |
86 dB (min.) |
| Normal Mode Rejection |
100 dB |
| Overvoltage Protection |
240 Vrms |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
Yes |
| Zero Drift |
±0.5 μV/°C |
| Span Drift |
±25 ppm/°C |
| Isolation |
±400 VDC, Virtual Channel to Channel Isolation |
| Digital Output |
| Channels |
3 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+5 to +50 VDC |
| Load Current |
700 mA/channel |
| Overvoltage Protection |
+60 VDC |
| Overload Protection |
1.4 A |
| Short-circuit Protection |
Yes |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE |
Yes |
| LAN bypass |
Yes |
| Security |
ID, Password and IP Filter |
| Protocol |
Modbus TCP, Modbus UDP |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
3.6 W (max.) |
| Powered from PoE |
IEEE 802.3af, Class1 |
| Powered from Terminal Block |
+12 to +48 VDC |
| Mechanical |
| Dimensions (mm) |
76 x 120 x 38 (W x L x H) |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
-25 to +75°C |
| Storage Temperature |
-30 to +80°C |
| Humidity |
10 to 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PET-7219Z/S2 CR |
PoE Ethernet I/O Module with 2-port Ethernet Switch with 10-ch universal AI, 3-ch DO (RoHS)
Includes DN-1822 Daughter Board, CA-252518D-1 1.8 m Cable and 4PAPP-006-G |
