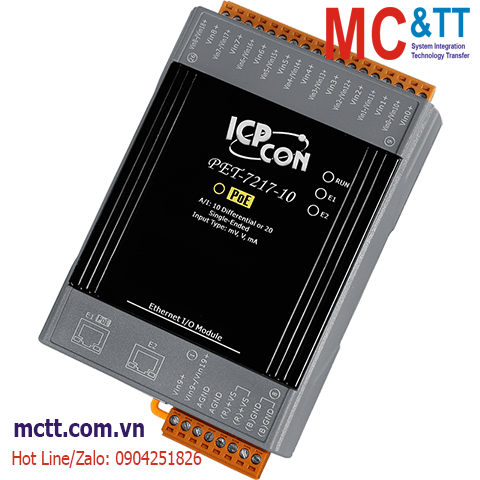

Module 2 cổng PoE Ethernet Modbus TCP 10/20 kênh AI ICP DAS PET-7217-10 CR

Chia sẻ:
Mã sản phẩm: PET-7217-10
Thương hiệu: ICP DAS
Tình trạng:

PoE Ethernet I/O Module with 2-port Ethernet Switch and 10/20-ch AI

Liên hệ
Mô tả

Module 2 cổng PoE Ethernet Modbus TCP 10/20 kênh AI ICP DAS PET-7217-10 CR

Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Built-in I/O
    • AI: 10/20 Channels

Introduction

The PET-7217-10 is a module with 10-channel differential or 20-channel single-ended analog inputs. It provides programmable input range on all analog channels (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA). Each analog channel is allowed to configure an individual range and has 240 Vrms high overvoltage protection. Each analog input can be programmed to accept voltage or current as input depending upon the position of corresponding jumper. The sampling rate of PET-7217-10 has two modes; fast mode and normal mode for your consideration. PET-7217-10 also has qualification for 4 kV ESD protection as well as 3000 VDC intra-module isolation

Applications

  • Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.

Specifications

Software
Built-in Web Server Yes
CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
2-way Isolation I/O: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±2 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5) ±2 kV for Power Line
LED Indicators
Status Run, Ethernet, I/O, PoE
Analog Input
Channels 10 differential or 20 single-ended (Note1),
software selectable
Type Voltage
Current
Range ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V
±20 mA, 0 to 20 mA, 4 to 20 mA
(Jumper Selectable)
Resolution 16-bit
Accuracy Normal Mode: ±0.1%
Fast Mode: ±0.5% or better
Sampling Rate Normal Mode: 10 Hz (total channels)
Fast Mode: 50 Hz (total channels)
Input Impedance Voltage: 2 MΩ (Differential), 1 MΩ (Single-ended)
Current: 125 Ω
Common Mode Rejection 86 dB (min.)
Normal Mode Rejection 100 dB
Common Voltage Protection ±200 VDC
Overvoltage Protection Differential: 240 Vrms
Single-ended: 150 Vrms
Overcurrent Protection 50 mA at 110 VDC (max.)
Individual Channel Configuration Yes
Open Wire Detection For 4 to 20 mA only
Zero Drift ±20 μV/°C
Span Drift ±25 ppm/°C
Isolation ±400 VDC, Virtual Channel to Channel Isolation
Ethernet
Ports 2 x RJ-45, 10/100 Base-TX, Swtich Ports
PoE Yes
LAN bypass Yes
Security ID, Password and IP Filter
Protocol Modbus TCP, Modbus UDP
Power
Reverse Polarity Protection Yes
Consumption 3.8 W (max.)
Powered from PoE IEEE 802.3af, Class1
Powered from Terminal Block +12 to +48 VDC
Mechanical
Dimensions (mm) 76 x 120 x 38 (W x L x H)
Installation DIN-Rail mounting
Environment
Operating Temperature -25 to +75°C
Storage Temperature -30 to +80°C
Humidity 10 to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PET-7217-10     CR  PoE Ethernet I/O Module with 2-port Ethernet Switch and 10/20-ch AI (RoHS)
