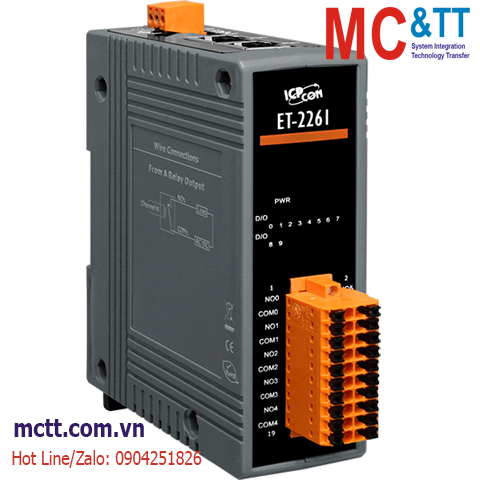

Module 2 cổng PoE Ethernet Modbus TCP & MQTT 10 kênh Power Relay ICP DAS PET-2261 CR

Features

  • Built-in Web Server
  • Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
  • 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
  • Dual Watchdog
  • I/O Pair Connection (Push and Pull)
  • Built-in I/O
    • 10-channel Relay Output
  • LED Display to Indicate the I/O Status

Introduction

Providing various digital I/O functions, the PET-2261 module is an Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industry and is now the most commonly available means of connecting industrial electronic devices. This makes the PET-2261 module perfect integration with the HMI, SCADA, PLC, and other software systems.

The PET-2261 supports 10 Form A electromechanical relays output channels. With 2 Ethernet ports, the ET-2261 allows daisy chain connection which permits flexibility in locating devices, eases installation, and lowers infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge, and 3000 VDC I/O isolation to enhance noise protection capabilities in industrial environments.

The module can be used to create a DI to DO pair-connect through the Ethernet. After configuration, the PET-2261 module can poll the status of remote DI channels via the Modbus TCP protocol and write data to local DO channels.

It is equipped with a removable terminal block connector for easy and robust wiring in industrial situations and features a powerful 32-bit ARM MCU to handle efficient network trafficking.

The PET-2261 module supports MQTT protocol and can act as a message publisher and subscriber. After connecting to the server MQTT Broker, the I/O status of the module can be published in the form of a topic, and can also receive messages from the same subscription topics. In communication, when the PET-2261 module is disconnected from the broker, the module has a reconnection mechanism that can automatically reconnect to the broker. In addition, there is a Keep-Alive Interval mechanism to ensure that the connection with the Broker is always maintained.

The PET-2261 supports the standard SNMP V2c specification. Through this specification, ET-2200 can transmit module information and I/O information to SNMP network management equipment or software (SNMP Network Management Software) to help administrators monitor the status of ET-2200 in real time. If the Trap function is enabled, when the module I/O status changes or reboots, it can send a message to the manager to keep track of the channel status at any time.

Applications

  • Factory, Building and Home Automation Remote Maintenance.

Specifications

Software
Built-in Web Server Yes
CPU Module
CPU 32-bit ARM
Watchdog Timer Module, Communication (Programmable)
Isolation
2-way Isolation Ethernet: 1500 VDC
I/O: 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±8 kV Contact for Each Terminal
±16 kV Air for Random Point
Surge (IEC 61000-4-5) ±3 kV for Power Line
LED Indicators
Status Run, Ethernet, I/O, PoE
Relay Output
Channels 10
Type Power Relay, Form A (SPST N.O.)
Contact Rating 5 A @ 250 VAC/24 VDC (Resistive Load)
Operate Time 10 ms (max.)
Release Time 5 ms (max.)
Electrical Endurance 10^5 ops
Mechanical Endurance 2 x 10^7 ops
Power on Value Programmable
Safe Value Programmable
Ethernet
Ports 2 x RJ-45, 10/100 Base-TX, Switch Ports
PoE Yes
LAN bypass Yes
Security Password and IP Filter
Protocol Modbus TCP, Modbus UDP, MQTT, and SNMP V2c
Power
Reverse Polarity Protection Yes
Consumption 4.6 W (max.)
Powered from PoE IEEE 802.3af, Class2
Powered from Terminal Block +10 to +48 VDC
Mechanical
Casing Plastic
Dimensions (mm) 33 x 126 x 108 (W x L x H)
Installation DIN-Rail mounting
Environment
Operating Temperature -25 to +75 °C
Storage Temperature -40 to +80 °C
Humidity 10 to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PET-2261     CR  PoE Ethernet I/O Module with 2-port Ethernet Switch and 10-ch Power Relay (RoHS)
