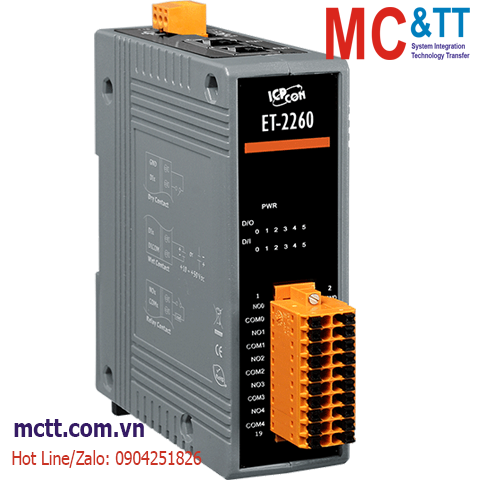

Module 2 cổng PoE Ethernet Modbus TCP & MQTT 6 kênh DI+ 6 kênh Power Relay ICP DAS PET-2260 CR
Features
- Built-in Web Server
- Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
- 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
- Dual Watchdog
- I/O Pair Connection (Push and Pull)
- Built-in I/O
- DI/Counter: 6 channels
- Power Relay: 6 channels
- LED Display to Indicate the I/O Status
Introduction
Providing various digital I/O functions, the PET-2260 module is an Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industry and is now the most commonly available means of connecting industrial electronic devices. This makes the PET-2260 module perfect integration with the HMI, SCADA, PLC, and other software systems.
The PET-2260 provides 6 wet-contact digital input channels and 6 Form A electromechanical Relays. With 2 Ethernet ports, the PET-2260 allows a daisy chain connection which permits flexibility in locating the device, eases installation, and lowers infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge, and 3000 VDC I/O isolation are also provided to enhance noise protection capabilities in industrial environments. Each input channel can be used as a 32-bit counter. The power-on value and safe value of the relay are configurable.
The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the PET-2260 module can poll the status of the local DI channels and then use the Modbus/TCP protocol to continuously write to the remote DO devices.
It is equipped with a removable terminal block connector for easy and robust wiring in industrial situations and features a powerful 32-bit ARM MCU to handle efficient network trafficking.
PET-2260 module supports MQTT protocol and can act as a message publisher and subscriber. After connecting to the server MQTT Broker, the I/O status of the module can be published in the form of a topic, and can also receive messages from the same subscription topics. In communication, when the PET-2260 module is disconnected from the broker, the module has a reconnection mechanism that can automatically reconnect with the broker. In addition, there is a Keep-Alive Interval mechanism to ensure that the connection with the Broker is always maintained.
The PET-2260 supports the standard SNMP V2c specification. Through this specification, ET-2200 can transmit module information and I/O information to SNMP network management equipment or software (SNMP Network Management Software) to help administrators monitor the status of ET-2200 in real time. If the Trap function is enabled, when the module I/O status changes or reboots, it can send a message to the manager to keep track of the channel status at any time.
Applications
Specifications
| Software |
| Built-in Web Server |
Yes |
| CPU Module |
| CPU |
32-bit ARM |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
Ethernet: 1500 VDC
I/O: 3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±8 kV Contact for Each Terminal
±16 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±3 kV for Power Line |
| LED Indicators |
| Status |
Run, Ethernet, I/O, PoE |
| Digital Input/Counter |
| Channels |
6 |
| Type |
Dry Contact
Wet Contact |
| Sink/Source (NPN/PNP) |
Dry: Source
Wet: Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: +10 to +50 VDC |
| OFF Voltage Level |
Dry: Open
Wet: +4 VDC (max.) |
| Max. Counts |
4,294,967,295 (32-bit) |
| Frequency |
3 kHz |
| Input Impedance |
7.5 kΩ |
| Overvoltage Protection |
+70 VDC |
| Low Pass Filter |
1 to 6500 ms (0.08 Hz to 500 Hz) |
| Relay Output |
| Channels |
6 |
| Type |
Power Relay, Form A (SPST N.O.) |
| Contact Rating |
5 A @ 250 VAC/24 VDC (Resistive Load) |
| Operate Time |
10 ms (max.) |
| Release Time |
5 ms (max.) |
| Electrical Endurance |
10^5 ops. |
| Mechanical Endurance |
2 x 10^7 ops. |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-TX, Switch Ports |
| PoE |
Yes |
| LAN bypass |
Yes |
| Security |
Password and IP Filter |
| Protocol |
Modbus TCP, Modbus UDP, MQTT, and SNMP V2c |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
4.4 W (max.) |
| Powered from PoE |
IEEE 802.3af, Class2 |
| Powered from Terminal Block |
+10 to +48 VDC |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 126 x 108 (W x L x H) |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
-25 to +75 °C |
| Storage Temperature |
-40 to +80 °C |
| Humidity |
10 to 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PET-2260 CR |
PoE Ethernet I/O Module with 2-port Ethernet Switch, 6-ch DI and 6-ch Power Relay (RoHS) |
