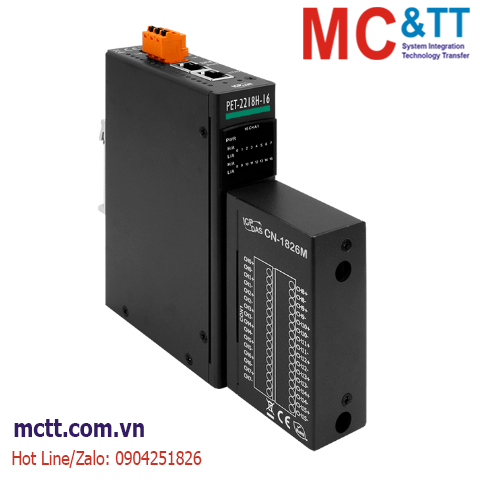

Module 2 cổng PoE Modbus TCP & MQTT 16 kênh Thermocouple ICP DAS PET-2218H-16/S1 CR

Chia sẻ:
Mã sản phẩm: PET-2218H-16/S1
Thương hiệu: ICP DAS
Tình trạng:

PoE I/O Module with 16-ch High Speed Thermocouple Input

Liên hệ
Mô tả

Module 2 cổng PoE Modbus TCP & MQTT 16 kênh Thermocouple ICP DAS PET-2218H-16/S1 CR

Features

  • Web Server for Configuration
  • Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
  • 2-port Ethernet Switch (LAN Bypass) for Daisy-chain Wiring
  • Supports Firmware Update via Ethernet
  • 100 Hz High-speed Sampling Rate for each Channel
  • Open Wire Detection
  • Built-in I/O
    • (P)ET-2218H/S1: 8-ch Thermocouple Input
    • (P)ET-2218H-16/S1: 16-ch Thermocouple Input
  • Individual Channel Configuration

Introduction

PET-2218H-16/S1 is a 16-channel thermocouple input module that provides 100Hz high-speed measurement and open wire detection for each channel. The module supports a variety of thermocouple input types, including Type J, K, T, E, R, S, B, N, C, L, M, and LDIN43710, and features an automatic cold-junction compensation function for all channels. The module includes a built-in 2-port Ethernet switch, facilitating a daisy-chain topology. This feature offers flexibility in device configuration, simplifies installation, and reduces infrastructure costs. Additionally, the module provides EMS (EFT/ESD/Surge) protection and 3000 VDC I/O isolation to enhance noise protection capabilities in industrial environments.

Applications

• Factory Automation
• Machine Automation
• Building Automation
• Remote Diagnosis & Maintenance
• Testing Equipment

Specifications

Software
Built-in Web Server Yes
CPU Module
CPU 32-bit ARM
Watchdog Timer Module, Communication (Programmable)
Isolation
2-way Isolation I/O: 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5) ±2 kV for Power Line
LED Indicators
Status Run, Ethernet, PoE
Analog Input
Channels 16
Sensor Type Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710)
Resolution 16-bit
Accuracy ±0.1% of FSR
Sampling Rate 100 Hz (per channel)
Overvoltage Protection 30 VDC
Individual Channel Configuration Yes
Open Wire Detection Yes
Ethernet
Ports 2 x RJ-45, 10/100 Base-Tx, Switch Ports
PoE Yes
LAN bypass Yes
Access Control Password and IP Filter
Protocol Modbus TCP, Modbus UDP, MQTT, SNMP V2c
Power
Reverse Polarity Protection Yes
Consumption 1.9 W (max.)
Powered from PoE IEEE 802.3af, Class1
Powered from Terminal Block +10 ~ +48 VDC
Mechanical
Casing Metal
Dimensions (mm) 33 x 151 x 144 (W x L x H)
Installation DIN-Rail mounting / Wall mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PET-2218H-16/S1 CR  PoE I/O Module with 2-port Ethernet Switch, 16-ch High Speed Thermocouple Input, 100 S/s (RoHS), includes CN-1826M Daughter Board
